Brand: Altronix | SKU: 552877

Altronix LPS5C24X | Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 24VDC @ 3.5A, 115VAC, BC300 Enclosure

$363.64

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

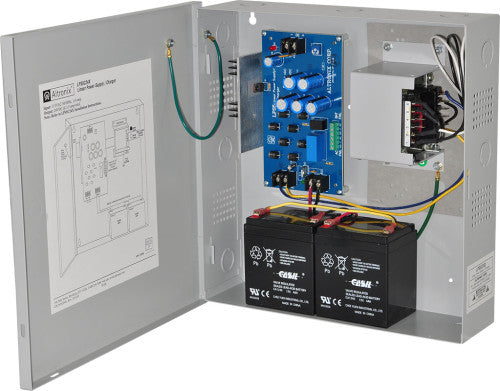

Altronix LPS5C24X linear power supply/charger converts a 115VAC 50/60Hz input to a 24VDC @ 3.5A continuous supply current. The output stays regulated until the batteries discharge to 25% capacity.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC 50/60Hz rated @ 1.6A.

Output

24VDC output.
3.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery

Battery leads included.
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails (zero voltage drop).
PTC battery protection.

Visual Indicators

AC/DC power LED indicator.

Supervision

Low battery and AC fail supervision (dry relay outputs 1A @ 28VDC).

Weights (approximate)

Product Weight	11.1 Lbs. (5.03 kg).
Shipping Weight	12.3 Lbs. (5.58 kg).
