Brand: Altronix
|
SKU:
10216078
Altronix LPS5C24X220 | Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 24VDC @ 3.5A, 220VAC, BC300 Enclosure
Regular price
$353.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix LPS5C24X220 | Linear Power Supply/Charger, Single Class 2 ...
Regular price
$353.82
Unit price
Description
Description

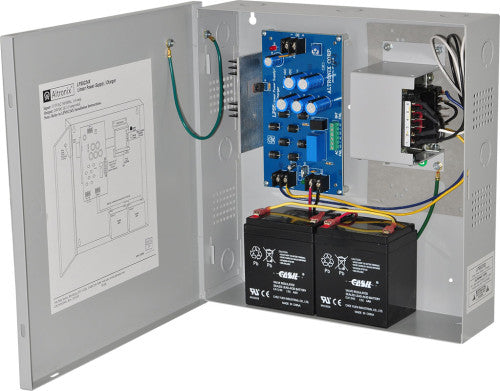

Altronix LPS5C24X220 | Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 24VDC @ 3.5A, 220VAC, BC300 Enclosure
Altronix LPS5C24X220 linear power supply/charger converts a 220VAC 50/60Hz input to a 24VDC @ 3.5A continuous supply current. The output stays regulated until the batteries discharge to 25% capacity.
Altronix LPS5C24X220 linear power supply/charger converts a 220VAC 50/60Hz input to a 24VDC @ 3.5A continuous supply current. The output stays regulated until the batteries discharge to 25% capacity.
Altronix - LPS5C24X220 - Features and Specifications
- INPUT
- 220VAC 50/60Hz rated @ 0.8A.
- OUTPUT
- 24VDC output.
- 3.5A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery
- Battery leads included.
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails (zero voltage drop).
- PTC battery protection.
Specifications
Specifications
Altronix - LPS5C24X220 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - LPS5C24X220 - Visual Indicators
- AC/DC power LED indicator.
Altronix - LPS5C24X220 - Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 43 BTU/Hr.
Altronix - LPS5C24X220 - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
Altronix - LPS5C24X220 - Weights (approximate)
| Product Weight: | 11.1 Lbs. (5.03 kg). |
|---|---|
| Shipping Weight | 12.3 Lbs. (5.58 kg). |
