Brand: Altronix
|
SKU:
10265977

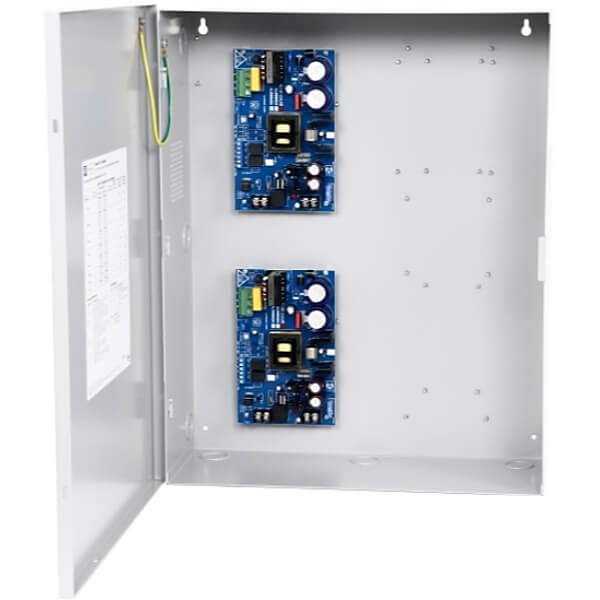

Altronix MAXFIT55E | Dual Power Supply Expandable Power Systems, 12VDC @ 10A and 12VDC @ 10A. BC750 Enclosure
Regular price
$819.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXFIT55E | Dual Power Supply Expandable Power Systems, 12...
Regular price
$819.05
Unit price
Description
Description
Altronix MAXFIT55E | Dual Power Supply Expandable Power Systems, 12VDC @ 10A and 12VDC @ 10A. BC750 Enclosure
Fusing: 5A/250V.
B) 12VDC @ 10A.
Other: Over Voltage Protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
Accommodates up to four (4) 12VDC/12AH Batteries.
Dimensions
16.5"W
x
20.5"H
x
6.25"D
(419.1 mm W x 520.7 mm H x 158.8 mm D).
21.2 Lbs.
(9.6 kg).
Shipping Weight:
26.6 Lbs.
(12.1 kg).
Input
Voltage: 115VAC 60Hz, 5.2.Fusing: 5A/250V.
Output
12VDC and/or 12VDC outputs.Maximum output current Options:
A) 12VDC @ 10A.B) 12VDC @ 10A.
Other: Over Voltage Protection. Filtered and regulated.
Back-up Battery (not included)
Capacity: 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators (LED)
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 123 BTU/Hr.Enclosure:
Wall mount enclosure for indoor use.Accommodates up to four (4) 12VDC/12AH Batteries.
Dimensions
16.5"W
x
20.5"H
x
6.25"D
(419.1 mm W x 520.7 mm H x 158.8 mm D).
Weights (approximate):
Product Weight:21.2 Lbs.
(9.6 kg).
Shipping Weight:
26.6 Lbs.
(12.1 kg).
Overview
- Altronix MaxFit55E Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC and 12VDC simultaneously via two (2) single output power supply/chargers. Suit of features includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Specifications
Specifications
Altronix - MAXFIT55E - Overview
- Altronix MaxFit55E Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC and 12VDC simultaneously via two (2) single output power supply/chargers. Suit of features includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Altronix - MAXFIT55E - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - MAXFIT55E - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | MAXFIT55E |
| Item Description | Dual Power Supply Expandable Power Systems, 12VDC @ 10A and 12VDC @ 10A. BC750 Enclosure |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 21.2 Lbs. |
| (9.6 kg). | Shipping Weight: |
| 26.6 Lbs. | (12.1 kg). |
