Brand: Altronix
|
SKU:
10061983

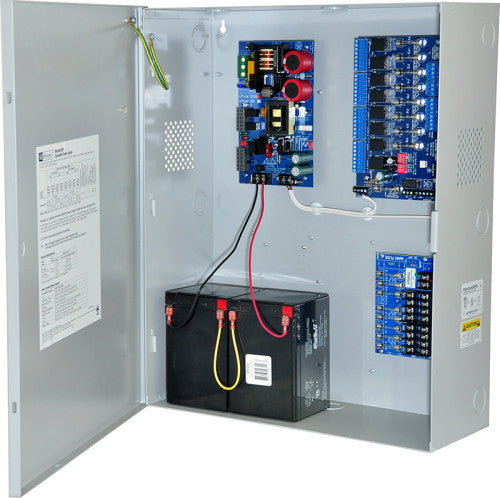

Altronix MAXFIT5F8AP | Access Power Controller Kit - BC750 enclosure with eFlow102NB, ACM8, PD8UL
Regular price
$796.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXFIT5F8AP | Access Power Controller Kit - BC750 enclosur...
Regular price
$796.93
Unit price
Description
Description
Altronix MAXFIT5F8AP | Access Power Controller Kit - BC750 enclosure with eFlow102NB, ACM8, PD8UL
Altronix MaxFit5F8AP Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into eight (8) distributed 12VDC fuse protected outputs and eight (8) independently controlled 12VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) relay outputs.
Altronix MaxFit5F8AP Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into eight (8) distributed 12VDC fuse protected outputs and eight (8) independently controlled 12VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) relay outputs.
Altronix - MAXFIT5F8AP - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 3.5A max.
- Main Fuse: 5A / 250V.
- OUTPUT
- Voltage: 12VDC.
- Current: 10A continuous.
- Outputs
- Auxiliary: Class 2 power-limited @ 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
- Back-up Battery (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units. Prevents deep battery discharge.
- Indicators (LED)
- AC Input: 120VAC is present.
- DC Output: Powered.
- PD8UL Power Distribution Module
- INPUT
- Voltage: 12VDC from eFlow102NB.
- OUTPUT
- Voltage: 12VDC.
- Eight (8) fuse protected outputs.
- 3.5A per output max.
- Output Fuses: 3.5A/32VDC.
- Indicators (LED)
- Green LED: DC Output.
- ACM8 Access Power Controller
- INPUT
- Voltage: 12VDC from eFlow102NB.
- Main Fuse: 10A / 32V.
- OUTPUT
- Voltage: 12VDC.
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs.
- Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output Fuses: 3.5A / 32VDC.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - MAXFIT5F8AP - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).
Altronix - MAXFIT5F8AP - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 65 BTU/Hr.
Altronix - MAXFIT5F8AP - Specifications
| UNSPSC Code | 24102001 |
|---|
Altronix - MAXFIT5F8AP - Weights (approximate)
| Product Weight: | 26.9 Lbs. (12.2 kg). |
|---|---|
| Shipping Weight | 32.9 Lbs. (14.9 kg). |
