Brand: Altronix
|
SKU:
10343986

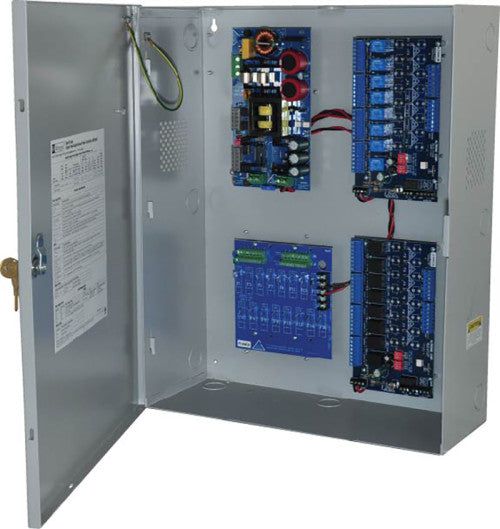

Altronix MAXFIT716AP | 16 Door Fused Access Power Controller Kit - BC750 enclosure with AL1024ULXB2, (2) ACM8, PD16W
Regular price
$1,002.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXFIT716AP | 16 Door Fused Access Power Controller Kit - ...
Regular price
$1,002.87
Unit price
Description
Description
Altronix MAXFIT716AP | 16 Door Fused Access Power Controller Kit - BC750 enclosure with AL1024ULXB2, (2) ACM8, PD16W
Input Fuse: 5A / 250V.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Fuse Rating: 15A/32VDC.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Sixteen (16) fuse protected outputs.
3.5A per output max.
Main Fuse: 10A / 32V.
Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A / 32VDC.
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Dimensions
16.5"W
x
20.5"H
x
6.25"D
(419.1 mm W x 520.7 mm H x 158.8 mm D).
28.1 Lbs.
(12.75 kg).
Shipping Weight:
34.1 Lbs.
(15.5 kg).
AL1024ULXB2 Power Supply/Charger / Input
Voltage: 115VAC, 60Hz, 4.2A max.Input Fuse: 5A / 250V.
Outputs
Voltage: 24VDC.Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Back-up Battery (not included)
Type: Sealed lead acid or gel type.Fuse Rating: 15A/32VDC.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators (LED)
AC Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
PD16W Power Distribution Module / Input
Voltage: 24VDC from AL1024ULXB2.Outputs
Voltage: 24VDC.Sixteen (16) fuse protected outputs.
3.5A per output max.
Output Fuses
3.5A/250V.Indicators (LED)
Green LED: DC Output.Two (2) ACM8 Dual Input Access Power Controllers / Input
Voltage: 24VDC from AL1024ULXB2.Main Fuse: 10A / 32V.
Outputs
Voltage: 24VDC.Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A / 32VDC.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 50° C (32° F to 122° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
145 BTU/Hr.Enclosure:
Wall mount enclosure for indoor use.Dimensions
16.5"W
x
20.5"H
x
6.25"D
(419.1 mm W x 520.7 mm H x 158.8 mm D).
Weights (approximate):
Product Weight:28.1 Lbs.
(12.75 kg).
Shipping Weight:
34.1 Lbs.
(15.5 kg).
Overview
- Altronix MaxFit716AP Access Power Controller distributes and switches power to access control systems and accessories. It converts a 115VAC, 60Hz input into sixteen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently controlled 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) relay outputs.
Specifications
Specifications
Altronix - MAXFIT716AP - Overview
- Altronix MaxFit716AP Access Power Controller distributes and switches power to access control systems and accessories. It converts a 115VAC, 60Hz input into sixteen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently controlled 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) relay outputs.
Altronix - MAXFIT716AP - Product Categories
- Security
- Access Control
- Panels
Altronix - MAXFIT716AP - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | MAXFIT716AP |
| Item Description | 16 Door Fused Access Power Controller Kit - BC750 enclosure with AL1024ULXB2, (2) ACM8, PD16W |
| Number Of Readers | 2 |
| Number Of Users | 2 |
| Zones | 2 |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 28.1 Lbs. |
| (12.75 kg). | Shipping Weight: |
| 34.1 Lbs. | (15.5 kg). |
