Brand: Altronix
|
SKU:
10265975
Altronix MAXFIT75E | Dual Power Supply Expandable Power Systems, 24VDC @ 10A and 12VDC @ 10A. BC750 Enclosure
Regular price
$835.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXFIT75E | Dual Power Supply Expandable Power Systems, 24...
Regular price
$835.31
Unit price
Description
Description

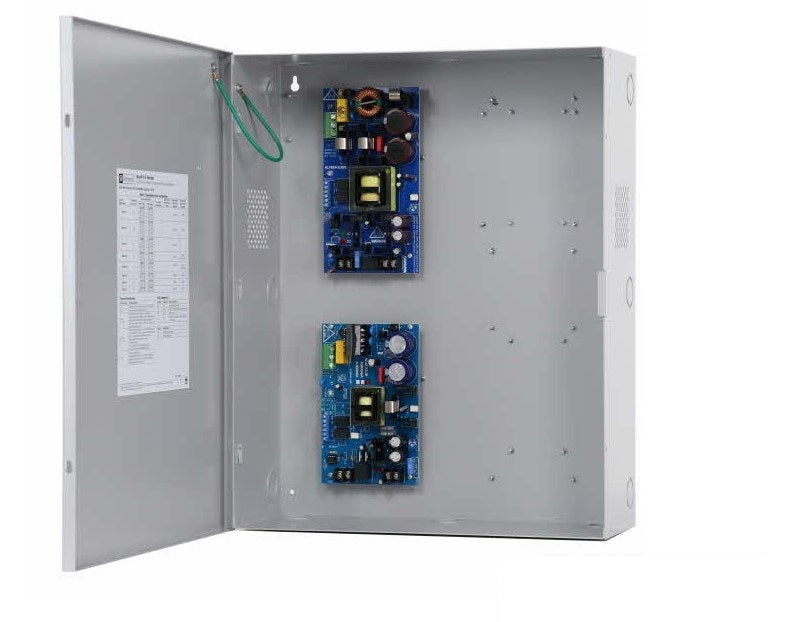

Altronix MAXFIT75E | Dual Power Supply Expandable Power Systems, 24VDC @ 10A and 12VDC @ 10A. BC750 Enclosure
Altronix MaxFit75E Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. Suit of features includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Altronix MaxFit75E Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. Suit of features includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Altronix - MAXFIT75E - Features and Specifications
- INPUT
- Voltage: 115VAC 60Hz, 7.0A.
- Fusing: 5A/250V.
- OUTPUT
- 12VDC and/or 24VDC outputs.
- Maximum output current Options:
- A) 24VDC @ 10A.
- B) 12VDC @ 10A.
- Other: Over Voltage Protection. Filtered and regulated.
- Back-up Battery (not included)
- Capacity: 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A/32V.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Indicators (LED)
- Input: 115VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
Specifications
Specifications
Altronix - MAXFIT75E - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).
Altronix - MAXFIT75E - Temperature
- Operating: 0ºC to 49ºC (32ºF to 120ºF).
- Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC and 24VDC: 184 BTU/Hr.
Altronix - MAXFIT75E - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
Altronix - MAXFIT75E - Weights (approximate)
| Product Weight: | 21.2 Lbs. (9.6 kg). |
|---|---|
| Shipping Weight | 26.6 Lbs. (12.1 kg). |
