Brand: Altronix
|
SKU:
10265970
Altronix MAXFIT77E | Dual Power Supply Expandable Power Systems, 24VDC @ 10A and 24VDC
Regular price
$930.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXFIT77E | Dual Power Supply Expandable Power Systems, 24...
Regular price
$930.34
Unit price
Description
Description

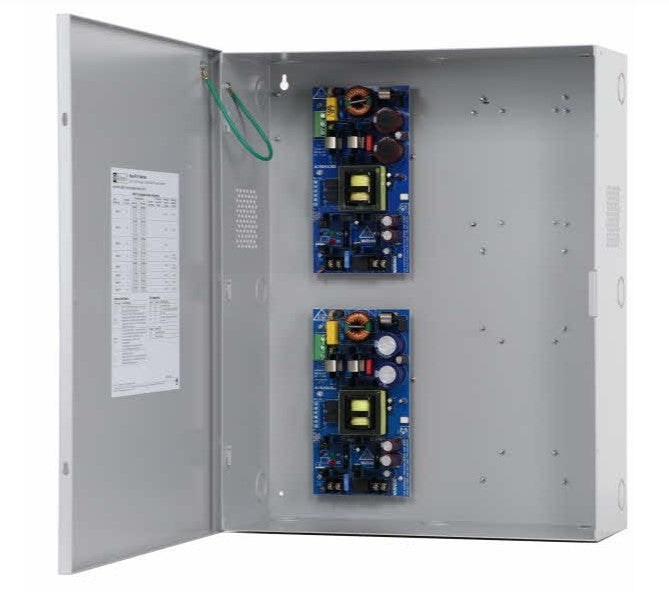

Altronix MAXFIT77E | Dual Power Supply Expandable Power Systems, 24VDC @ 10A and 24VDC
Altronix MaxFit77E Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 24VDC and 24VDC simultaneously via two (2) single output power supply/chargers. Suit of features includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Altronix - MAXFIT77E - Features
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
Specifications
Specifications
Altronix - MAXFIT77E - Overview
- Input
- Voltage: 115VAC 60Hz, 8.8A.
- Fusing: 5A/250V.
- Output
- 24VDC / 24VDC outputs.
- Maximum output current Options:
- A) 24VDC @ 10A.
- B) 24VDC @ 10A.
- Other: Over Voltage Protection. Filtered and regulated.
- Back-up Battery (not included)
- Capacity: 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A/32V.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form "C" contacts.
- Battery: Form "C" contacts.
- Indicators (LED)
- Input: 115VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- Temperature
- Operating: 0ºC to 49ºC (32ºF to 120ºF).
- Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.):
- 24VDC and 24VDC: 246 BTU/Hr.
Altronix - MAXFIT77E - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Sales Category | Power Supply |
| Dimensions (approximate) | 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D). |
Altronix - MAXFIT77E - Weights (approximate)
| Product Weight | 21.7 Lbs. (9.8 kg). |
|---|---|
| Shipping Weight | 27.1 Lbs. (12.3 kg). |
