Brand: Altronix
|
SKU:
10013705
Altronix MAXFIT77FE | Dual Power Supply Expandable Power Systems, 24VDC @ 10A; 24VDC @ 10A, BC750 Enclosure
Regular price
$949.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXFIT77FE | Dual Power Supply Expandable Power Systems, 2...
Regular price
$949.10
Unit price
Description
Description

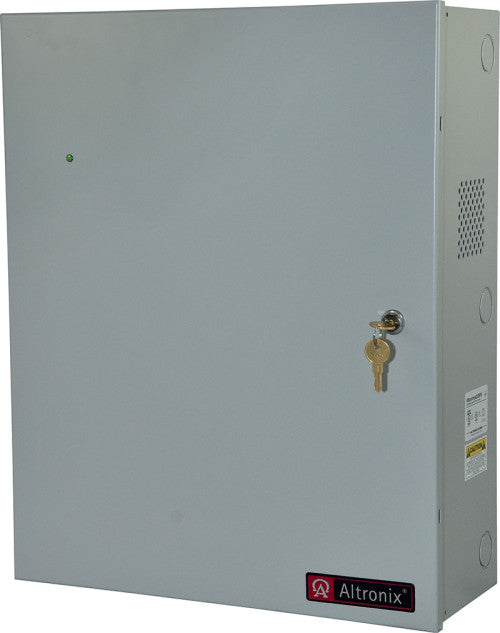

Altronix MAXFIT77FE | Dual Power Supply Expandable Power Systems, 24VDC @ 10A; 24VDC @ 10A, BC750 Enclosure
Altronix MaxFit77FE Dual Power Supply Expandable Power Systems provides system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Unit provides 24VDC via two (2) single output power supply/charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Altronix MaxFit77FE Dual Power Supply Expandable Power Systems provides system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Unit provides 24VDC via two (2) single output power supply/charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Altronix - MAXFIT77FE - Features and Specifications
- INPUT
- Voltage: 120VAC 60Hz, 9A.
- OUTPUT
- 24VDC outputs.
- Maximum output current Options:
- 24VDC @ 10A plus 24VDC @ 10A.
- Non power-limited outputs.
- Aux. power-limited output rated @ 1A (unswitched).
- Over Voltage Protection. Filtered and regulated.
- Fuse Ratings
- Power Supply input fuse rated: @ 6.3A/250V.
- Back-up Battery (not included)
- Capacity: 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A/32V.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators (LED)
- Input: 120VAC is present.
- DC Output: Powered.
Specifications
Specifications
Altronix - MAXFIT77FE - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).
Altronix - MAXFIT77FE - Temperature
- Operating: 0ºC to 49ºC (32ºF to 120ºF).
- Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.):
- 24VDC: 246 BTU/Hr.
Altronix - MAXFIT77FE - Specifications
| UNSPSC Code | 43211700 |
|---|
Altronix - MAXFIT77FE - Weights (approximate)
| Product Weight: | 21.7 Lbs. (9.8 kg). |
|---|---|
| Shipping Weight | 27.1 Lbs. (12.3 kg). |
