Brand: Altronix
|
SKU:
10265972

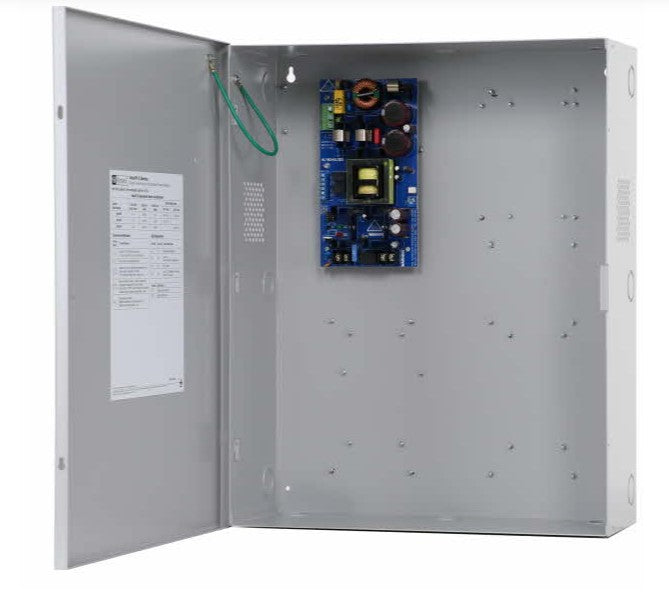

Altronix MAXFIT7E | Single Power Supply Expandable Power Systems, 24VDC @ 10A. BC750 Enclosure
Regular price
$626.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXFIT7E | Single Power Supply Expandable Power Systems, 2...
Regular price
$626.68
Unit price
Description
Description
Altronix MAXFIT7E | Single Power Supply Expandable Power Systems, 24VDC @ 10A. BC750 Enclosure
Altronix MaxFit7E Expandable Power System provide system designers and installers withmaximum power choices and the highest levels of versatility. They provide 24VDC. The suit of features includes AC fail, low battery and battery presence monitoring. All interconnecting equipment must be UL Listed. MaxFit enclosure offers ample room for expanding access control systems and accommodates up to four (4) 12VDC/12AH batteries.
Altronix - MAXFIT7E - Features
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
Specifications
Specifications
Altronix - MAXFIT7E - Overview
- Input
- Voltage: 115VAC 60Hz.
- Fusing: 5A/250V.
- Outputs
- Voltage: 24VDC.
- Current: 10A maximum supply current.
- Other: Overvoltage protection. Filtered and regulated.
- Back-up Battery (not included)
- Capacity 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A @ 32V.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form "C" contacts.
- Battery: Form "C" contacts.
- Indicators (LED)
- Input: 115VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- Temperature
- Operating: 0ºC to 49ºC (32ºF to 120ºF).
- Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.):
- 24VDC: 123 BTU/Hr.
Altronix - MAXFIT7E - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Sales Category | Power Supply |
| Dimensions (approximate) | 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D). |
Altronix - MAXFIT7E - Weights (approximate)
| Product Weight | 20.6 Lbs. (9.3 kg). |
|---|---|
| Shipping Weight | 26 Lbs. (11.8 kg). |
