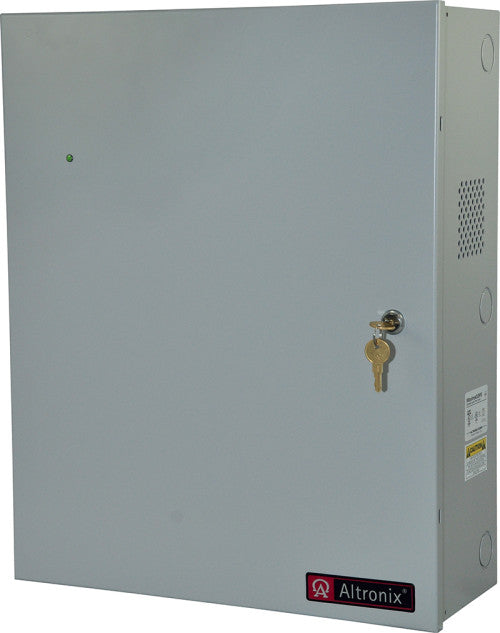

Altronix MAXFIT7F16APS | Access Power Controller Kit - BC750 enclosure with eFlow104NB, (2) ACMS8, VR6, PD16W
Altronix MaxFit7F16APS Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into sixteen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently controlled 12VDC or 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) relayed outputs.
Altronix MaxFit7F16APS Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into sixteen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently controlled 12VDC or 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) relayed outputs.
Altronix - MAXFIT7F16APS - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Main Fuse: 6.5A / 250V.
- OUTPUT
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched).
- Protection: Overvoltage protection. Filtered and regulated.
- Back-up Battery (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators (LED)
- AC Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- PD16W Power Distribution Module
- INPUT
- Voltage: 24VDC from eFlow104NB.
- OUTPUT
- Voltage: 24VDC.
- Sixteen (16) fuse protected outputs.
- 3.5A per output max.
- Output Fuses: 3.5A/250V.
- Indicators (LED)
- Green LED: DC Output.
- VR6 Voltage Regulator
- Input/Output
- Voltage Range: 24VDC @ 10A = Output: 12VDC @ 6A.
- OUTPUT
- 12VDC regulated output.
- Output rating 6A max.
- Surge suppression.
- Indicators (LED)
- Input: Indicates input voltage is present.
- Output: Indicates normal operating condition.
- Two (2) ACMS8 Dual Input Access Power Controllers
- INPUT
- Two (2) independent low voltage inputs.
- Input Fuse: 15A/32V.
- Trigger Inputs:
- Eight (8) individually controlled trigger inputs:
- a) Normally open (NO) inputs.
- b) Normally closed (NC) inputs.
- c) Open collector sink inputs.
- d) Wet Input (5VDC - 24VDC) with 10K resistor.
- e) Any combination of the above.
- Outputs
- Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.
- Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) indepently controlled Form “C” relay outputs:
- a) Fail-Safe and/or Fail-Secure power outputs.
- b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
- c) Auxiliary power outputs (unswitched).
- d) Any combination of the above.
- Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Output Fuses
- 3A/32V each.
- Total output current is determined by the power supply, not to exceed a maximum of 10A for each input.
Specifications
Specifications
Altronix - MAXFIT7F16APS - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).
Altronix - MAXFIT7F16APS - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 177 BTU/Hr.
Altronix - MAXFIT7F16APS - Specifications
| UNSPSC Code | 24102001 |
|---|
Altronix - MAXFIT7F16APS - Weights (approximate)
| Product Weight: | 28.1 Lbs. (12.75 kg). |
|---|---|
| Shipping Weight | 34.1 Lbs. (15.5 kg). |
