Brand: Altronix
|
SKU:
10183984

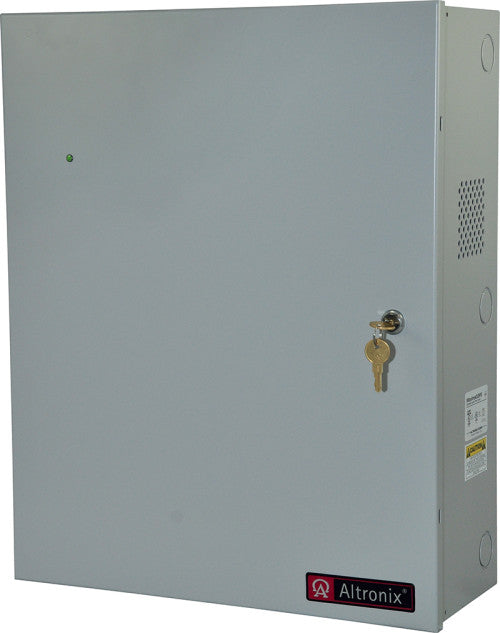

Altronix MAXFIT7F8APS | Access Power Controller Kit - BC750 enclosure with eFlow104NB, ACM8, PDS8, VR6
Regular price
$974.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXFIT7F8APS | Access Power Controller Kit - BC750 enclosu...
Regular price
$974.10
Unit price
Description
Description
Altronix MAXFIT7F8APS | Access Power Controller Kit - BC750 enclosure with eFlow104NB, ACM8, PDS8, VR6
Altronix MaxFit7F8APS Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into eight (8) distributed 12VDC or 24VDC fuse protected outputs and eight (8) independently controlled 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) relay outputs.
Altronix MaxFit7F8APS Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into eight (8) distributed 12VDC or 24VDC fuse protected outputs and eight (8) independently controlled 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) relay outputs.
Altronix - MAXFIT7F8APS - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Input Fuse: 6.3A / 250V.
- OUTPUT
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched).
- Protection: Overvoltage protection. Filtered and regulated.
- Back-up Battery (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators (LED)
- AC Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- PDS8 Dual Input Power Distribution Module
- INPUT
- Voltage: 12VDC from VR6 and 24VDC from eFlow104NB.
- Input Fuse: 10A/32V.
- OUTPUT
- Voltage: 12VDC and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Outputs Ratings
- Fuses: 3A/32V.
- Indicators (LED)
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
- VR6 Voltage Regulator
- Input/Output
- Voltage Range: 24VDC @ 10A = Output: 12VDC @ 6A.
- OUTPUT
- 12VDC regulated output.
- Output rating 6A max.
- Surge suppression.
- Indicators (LED)
- Input: Indicates input voltage is present.
- Output: Indicates normal operating condition.
- ACM8 Access Power Controller
- INPUT
- Voltage: 24VDC from eFlow104NB.
- Main Fuse: 10A / 32V.
- Outputs
- Voltage: 24VDC.
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs.
- Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output Fuses: 3.5A / 32VDC.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - MAXFIT7F8APS - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).
Altronix - MAXFIT7F8APS - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 145 BTU/Hr.
Altronix - MAXFIT7F8APS - Specifications
| UNSPSC Code | 24102001 |
|---|
Altronix - MAXFIT7F8APS - Weights (approximate)
| Product Weight: | 27.3 Lbs. (12.4 kg). |
|---|---|
| Shipping Weight | 33.6 Lbs. (15.2 kg). |
