Brand: Altronix
|
SKU:
552882

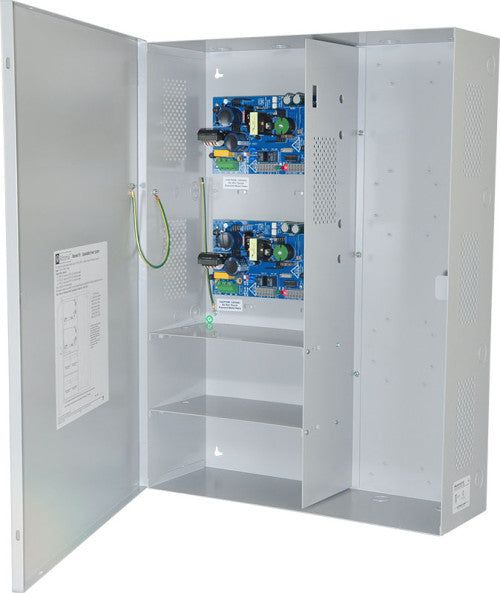

Altronix MAXIMAL11FE | Power Supply/Charger, Expand able, Dual 12/24VDC outputs @ 3.5A each (12A max), 115VAC, FAI, LinQ2 Ready, BC800 Enclosure
Regular price
$1,052.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXIMAL11FE | Power Supply/Charger, Expand able, Dual 12/2...
Regular price
$1,052.88
Unit price
Description
Description
Maximal11FE Expandable Power System provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. Includes AC fail, low battery and battery presence monitoring. Enclosure facilitates up to four (4) 12VDC/12AH batteries. All interconnecting equipment must be UL Listed.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 120VAC 60Hz, 7.0A input.
Output
- 12VDC and/or 24VDC outputs
- Maximum output current Options:
- A) 12VDC @ 4A plus 12VDC @ 4A.
- B) 12VDC @ 4A plus 24VDC @ 3A.
- C) 24VDC @ 3A plus 24VDC @ 3A.
- Power-limited outputs.
- Aux. power-limited output rated @ 1A (unswitched).
- Over Voltage Protection.
Fuse Ratings
- Power Supply input fuse rated @ 5A/250V.
Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail & presence supervision (form "C" contacts).
- Low power shutdown. Prevents deep battery discharge.
Weights (approximate)
| Product Weight | 32.1 Lbs. (14.6 kg). |
|---|---|
| Shipping Weight | 39.25 Lbs. (17.8 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=152141 |
Documents and Downloads
Documents and Downloads
- Altronix MAXIMAL11FE Data Sheet
- Altronix MAXIMAL11FE Data Sheet
- Altronix MAXIMAL11FE Fichas Tecnicas
- Altronix MAXIMAL11FE Installation Instructions prior to May. 4, 2015
- Altronix MAXIMAL11FE Altronix_MAXIMAL11FE_Power_Supply_Installation_Instructions.pdf
- Altronix MAXIMAL11FEInstallation Instructions prior to Jan. 10, 2015
- Altronix MAXIMAL11FE Guia de Instalacion
- Altronix MAXIMAL11FE Revit File
- Altronix MAXIMAL11FE Lifetime Warranty
