Brand: Altronix | SKU: 340087

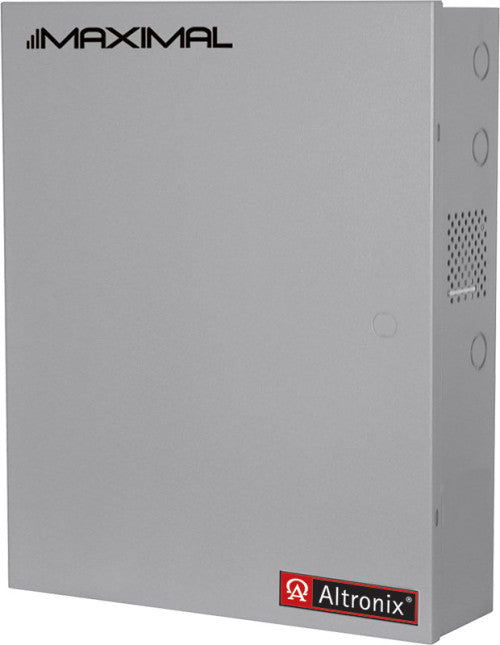

Altronix MAXIMAL33 | Access Power Controller w/ Power Supply/Chargers, 16 Fused Relay Outputs, Dual 12/24VDC P/S @ 6A each, 115VAC, BC800 Enclosure

$1,211.69

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Maximal33 distributes and switches power to access control systems and accessories. It converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC fuse protected outputs. These Fail-Safe/Fail-Secure power outputs may be converted to dry form "C" contacts. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Main Features

Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
Fire Alarm disconnect input options:
a) Normally open (NO) or normally closed (NC) dry contact input.
b) Polarity reversal input from FACP signaling circuit.
Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to four (4) 12VDC/12AH Batteries.
Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC 60Hz, 7A input
Power supply input options:
a) Two (2) common power input for either ACM8 and lock power (factory installed).
b) Two (2) isolated power inputs (external power supply is required), (current is determined by the power supply connected, not to exceed a maximum of 10A total).
Sixteen (16) Access Control System trigger inputs
Input options:
a) Sixteen (16) normally open (NO) inputs.
b) Sixteen (16) open collector inputs.
c) Any combination of the above.

Output

12VDC and/or 24VDC outputs
Maximum output current Options:
A) 12VDC @ 5.5A plus 12VDC @ 5.5A.
B) 24VDC @ 5.7A plus 24VDC @ 5.7A.
C) 12VDC @ 5.5A plus 24VDC @ 5.7A.
Sixteen (16) independently controlled outputs
Output options:
a) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs.
b) Sixteen (16) form "C" 5A rated relay outputs.
c) Any combination of the above.
Sixteen (16) auxiliary power outputs (unswitched), (outputs are rated 2.5A).
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.

Fuse Ratings

Power Supply input fuse rated @ 3.5A/250V.
ACM8 boards main fuse is rated at 10A. Output fuses are rated @ 3.5A.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).

Weights (approximate)

Product Weight	31.6 Lbs. (14.3 kg).
Shipping Weight	38.6 Lbs. (17.5 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment	https://iq.ulprospector.com/en/profile?e=152141
