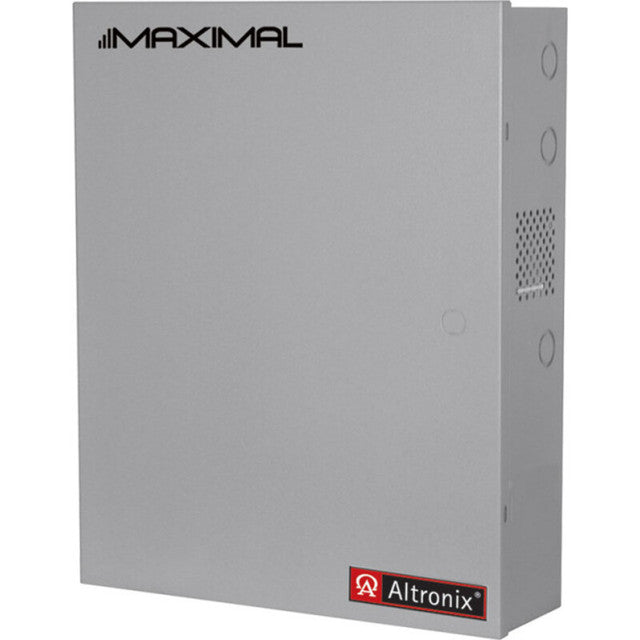

Altronix MAXIMAL33DV | Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 12/24VDC P/S @ 6A each, 220VAC, BC800 Enclosure

Altronix MAXIMAL33DV | Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 12/24VDC P/S @ 6A each, 220VAC, BC800 Enclosure

Input

220VAC (working range 198VAC - 256VAC), 50/60Hz, 3A input.

Power supply input options:

a) Two (2) common power input for either ACM8CB and lock power (factory installed).
b) Two (2) isolated power inputs (external power supply is required), (current is determined by the power supply connected, not to exceed a maximum of 10A total).
Sixteen (16) Access Control System trigger inputs.

Input options:

a) Sixteen (16) normally open (NO) inputs.
b) Sixteen (16) open collector inputs.
c) Any combination of the above.

Output

12VDC and/or 24VDC outputs.

Maximum output current Options:

A) 12VDC @ 5.5A plus 12VDC @ 5.5A.
B) 24VDC @ 5.7A plus 24VDC @ 5.7A.
C) 12VDC @ 5.5A plus 24VDC @ 5.7A.
Sixteen (16) independently controlled outputs can be Fail-Safe and/or Fail-Secure power outputs (auto-resettable).
Sixteen (16) auxiliary power outputs (unswitched) (outputs are rated 2A).
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.

Fuse Ratings

Power Supply input fuse rated @ 3.5A/250V.
ACM8CB boards main fuse is rated at 10A. Output PTCs are rated @ 2.5A.

Features

Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs.

Fire Alarm disconnect input options:

a) Normally open (NO) or normally closed (NC) dry contact input.
b) Polarity reversal input from FACP signaling circuit.
Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when unit switches over to battery backup (AC failure condition).

Visual Indicators

Red LEDs indicate outputs are triggered (relays energized).
Green LED indicates FACP disconnect is triggered.
AC input and DC output LED indicators.

Electrical / Temperature:

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

12VDC: 68 BTU/Hr.
24VDC: 140 BTU/Hr.
12VDC & 24VDC: 104 BTU/Hr.
System AC input VA requirement: 660VA.
