Brand: Altronix
|
SKU:
10386581

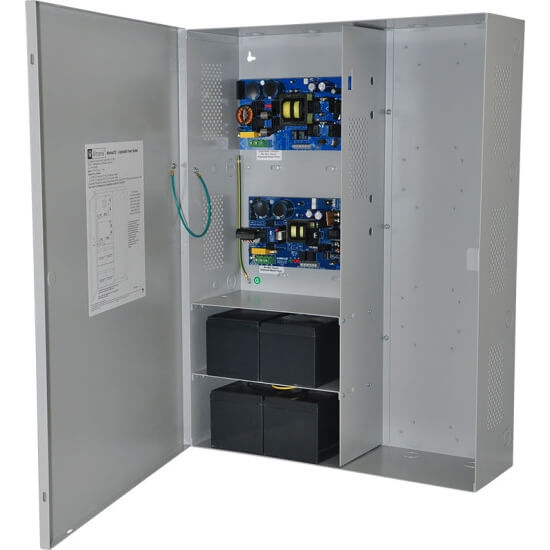

Altronix MAXIMAL35EV | Power Supply/Charger, Expandable, 1 P/S 12/24VDC @ 6A & 1 P/S 12VDC @ 10A, 220VAC, BC800 Enclosure
Regular price
$1,062.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXIMAL35EV | Power Supply/Charger, Expandable, 1 P/S 12/2...
Regular price
$1,062.88
Unit price
Description
Description
Altronix MAXIMAL35EV | Power Supply/Charger, Expandable, 1 P/S 12/24VDC @ 6A & 1 P/S 12VDC @ 10A, 220VAC, BC800 Enclosure
B) 24VDC @ 6A plus 12VDC @ 10A.
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when unit switches over to battery backup (AC failure condition).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
12VDC & 24VDC: 130 BTU/Hr.
System AC input VA requirement: 484VA.
Input
220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.2A input.Output
12VDC and/or 24VDC outputs.Maximum output current Options:
A) 12VDC @ 6A plus 12VDC @ 10A.B) 24VDC @ 6A plus 12VDC @ 10A.
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.
Fuse Ratings
Power Supply input fuse rated @ 3.5A/250V.Supervision
AC fail supervision (form "C" contacts).Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when unit switches over to battery backup (AC failure condition).
Visual Indicators
AC input and DC output LED indicators.Electrical / Temperature:
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 98 BTU/Hr.12VDC & 24VDC: 130 BTU/Hr.
System AC input VA requirement: 484VA.
Overview
- Maximal35EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 12VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Specifications
Specifications
Altronix - MAXIMAL35EV - Overview
- Maximal35EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 12VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Altronix - MAXIMAL35EV - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - MAXIMAL35EV - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | MAXIMAL35EV |
| Item Description | Power Supply/Charger, Expandable, 1 P/S 12/24VDC @ 6A & 1 P/S 12VDC @ 10A, 220VAC, BC800 Enclosure |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 43.5 Lbs. |
| (19.73 kg). | Shipping Weight: |
| 47.5 Lbs. | (21.55 kg). |
