Brand: Altronix
|
SKU:
340109

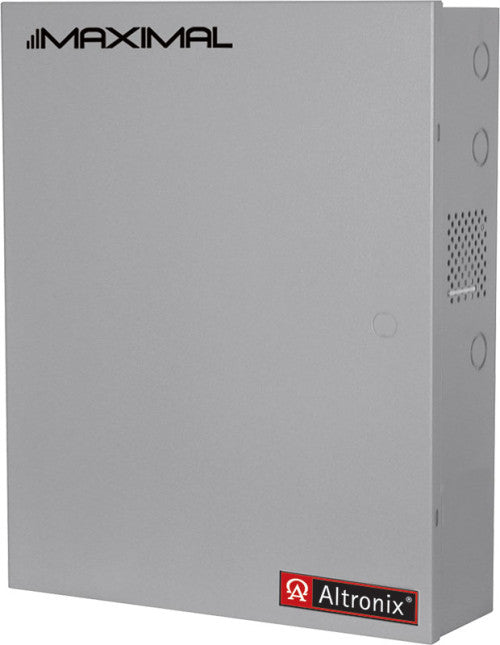

Altronix MAXIMAL75E | Power Supply/Charger, Expand able, 1 P/S 24VDC @ 10A & 1 P/S 12VDC @ 10A, 115VAC, BC800 Enclosure
Regular price
$1,024.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXIMAL75E | Power Supply/Charger, Expand able, 1 P/S 24VD...
Regular price
$1,024.12
Unit price
Description
Description
Maximal75E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC and 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to three (3) 12VDC/12AH Batteries.
- Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 115VAC 60Hz, 7.0A input.
Output
- 12VDC and 24VDC output
- Maximum output current Options:
- A) 24VDC @ 10A plus 12VDC @ 10A.
- Filtered and electronically regulated outputs (built-in power supply).
- Thermal and short circuit protection with auto reset.
Fuse Ratings
- Power Supply input fuse ratings:
- AL1012ULXB: 3.5A/250V
- AL1024ULXB: 10A/250V
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery and battery presence supervision (form "C" contact).
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Zero voltage drop when unit switches over to battery backup (AC failure condition).
Weights (approximate)
| Product Weight | 42.3 Lbs. (19.17 kg). |
|---|---|
| Shipping Weight | 46.3 Lbs. (21 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=152141 |
Documents and Downloads
Documents and Downloads
- Altronix MAXIMAL75E Data Sheet
- Altronix MAXIMAL75E Data Sheet
- Altronix MAXIMAL75E Fichas Tecnicas
- Altronix MAXIMAL75E Installation Instructions prior to Jan. 10, 2015
- Altronix MAXIMAL75E Altronix_MAXIMAL75E_Power_Supply_Installation_Instructions.pdf
- Altronix MAXIMAL75EGuia de Instalacion
- Altronix MAXIMAL75E CAD Drawing
- Altronix MAXIMAL75E Revit File
- Altronix MAXIMAL75E Lifetime Warranty
