Brand: Altronix
|
SKU:
340113

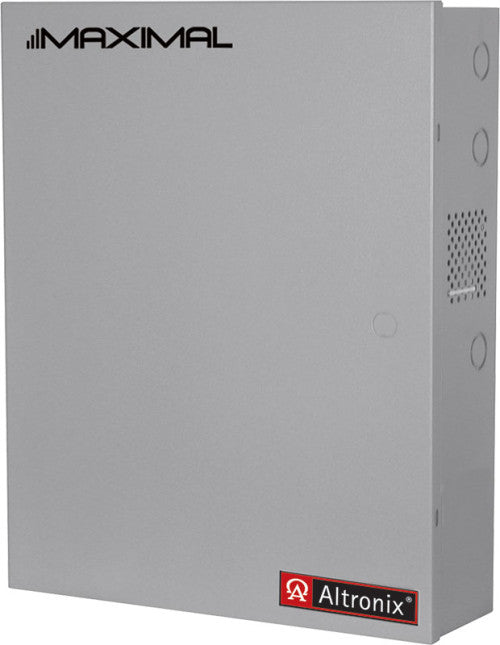

Altronix MAXIMAL77E | Power Supply Charger, Expand able, Dual 24VDC outputs @ 9.7A each, 115VAC, BC800 Enclosure
Regular price
$1,052.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXIMAL77E | Power Supply Charger, Expand able, Dual 24VDC...
Regular price
$1,052.88
Unit price
Description
Description
Maximal77E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 115VAC 60Hz, 8.8A input.
Output
- 24VDC outputs
- Maximum output current Options:
- A) 24VDC @ 10A plus 24VDC @ 10A.
- Filtered and electronically regulated outputs (built-in power supply).
- Thermal and short circuit protection with auto reset.
Fuse Ratings
- Power Supply input fuse rated @ 10A/250V.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery and battery presence supervision (form "C" contact).
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Zero voltage drop when unit switches over to battery backup (AC failure condition).
Weights (approximate)
| Product Weight | 42.3 Lbs. (19.17 kg). |
|---|---|
| Shipping Weight | 46.3 Lbs. (21 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=152141 |
Documents and Downloads
Documents and Downloads
- Altronix MAXIMAL77E Data Sheet
- Altronix MAXIMAL77E Data Sheet
- Altronix MAXIMAL77E Fichas Tecnicas
- Altronix MAXIMAL77E Installation Instructions prior to Jan. 10, 2015
- Altronix MAXIMAL77E Altronix_MAXIMAL77E_Power_Supply_Installation_Instructions.pdf
- Altronix MAXIMAL77EGuia de Instalacion
- Altronix MAXIMAL77E CAD Drawing
- Altronix MAXIMAL77E Revit File
- Altronix MAXIMAL77E Lifetime Warranty
