Brand: Altronix
|
SKU:
10216199

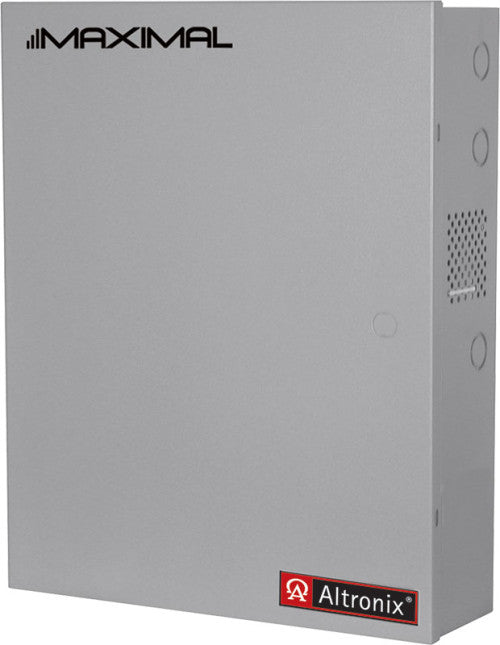

Altronix MAXIMAL77EV | Power Supply Charger, Expandable, Dual 24VDC outputs @ 9.7A each, 220VAC, BC800 Enclosure
Regular price
$1,063.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXIMAL77EV | Power Supply Charger, Expandable, Dual 24VDC...
Regular price
$1,063.41
Unit price
Description
Description
Altronix MAXIMAL77EV | Power Supply Charger, Expandable, Dual 24VDC outputs @ 9.7A each, 220VAC, BC800 Enclosure
Maximal77EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Maximal77EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Altronix - MAXIMAL77EV - Features and Specifications
- INPUT
- 220VAC (working range 198VAC - 256VAC), 50/60Hz, 6.25A input.
- OUTPUT
- 24VDC outputs.
- Maximum output current Options:
- A) 24VDC @ 10A plus 24VDC @ 10A.
- Filtered and electronically regulated outputs (built-in power supply).
- Thermal and short circuit protection with auto reset.
- Fuse Ratings
- Power Supply input fuse rated @ 10A/250V.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery and battery presence supervision (form "C" contact).
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Zero voltage drop when unit switches over to battery backup (AC failure condition).
Specifications
Specifications
Altronix - MAXIMAL77EV - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - MAXIMAL77EV - Visual Indicators
- AC input and DC output LED indicators.
Altronix - MAXIMAL77EV - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 246 BTU/Hr.
- System AC input VA requirement: 1375VA.
Altronix - MAXIMAL77EV - Specifications
| Fire Alarm Zones | 2 |
|---|---|
| Sales Category | POWER SUPPLY |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - MAXIMAL77EV - Weights (approximate)
| Product Weight: | 42.3 Lbs. (19.17 kg). |
|---|---|
| Shipping Weight | 46.3 Lbs. (21 kg). |
