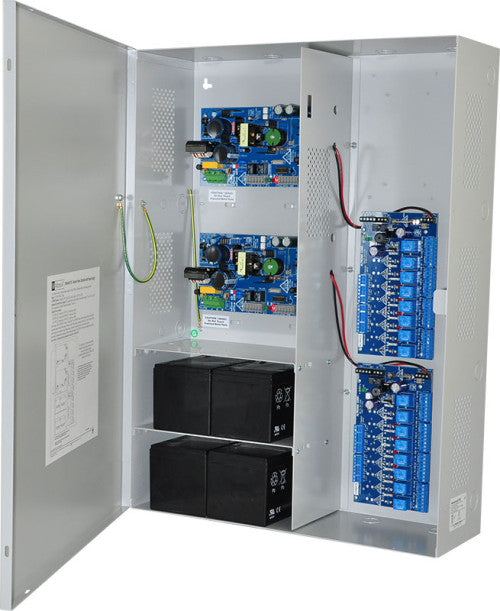

Altronix MAXIMAL77FDV | Access Power Controller with Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 24VDC P/S @ 9.7A each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure

Altronix - MAXIMAL77FDV - Features and Specifications

• INPUT
• 220VAC (working range 198VAC - 256VAC), 50/60Hz, 5.4A input.
• Power supply input options:
• a) Two (2) common power input for either ACM8CB and lock power (factory installed).
• b) Two (2) isolated power inputs (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total.
• Sixteen (16) Access Control System trigger inputs.
• Input options:
• a) Sixteen (16) normally open (NO) inputs.
• b) Sixteen (16) open collector inputs.
• c) Any combination of the above.
• OUTPUT
• 24VDC outputs.
• Maximum output current Options:
• A) 24VDC @ 9.6A plus 24VDC @ 9.6A.
• Sixteen (16) independently controlled outputs can be Fail-Safe and/or Fail-Secure power outputs (auto-resettable).
• Sixteen (16) auxiliary power outputs (unswitched) (outputs are rated 2.5A).
• Filtered and electronically regulated outputs (built-in power supply).
• Thermal and short circuit protection with auto reset.
• Fuse Ratings
• Power Supply input fuse rated @ 6.3A/250V.
• ACM8CB boards main fuse is rated at 10A. PTC outputs are rated @ 2.5A each.
• Fire Alarm disconnect input options:
• a) Normally open (NO) or normally closed (NC) dry contact input.
• b) Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).
• Supervision
• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Low battery and battery presence supervision (form "C" contact).
• Battery Backup
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).
