Brand: Altronix
|
SKU:
552910

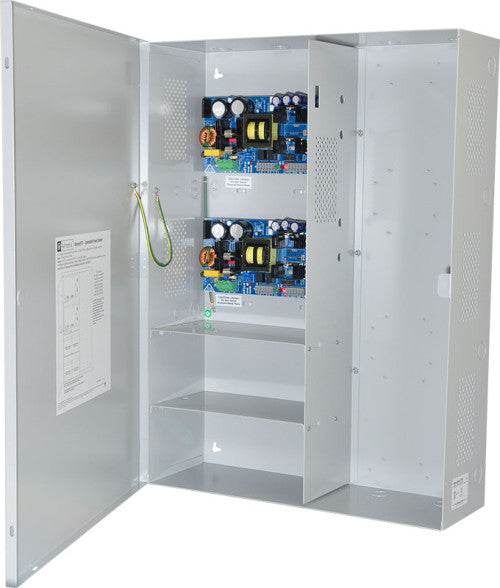

Altronix MAXIMAL77FE | Power Supply/Chargers, Expand able, Dual 24VDC outputs @ 9.7A each, 115VAC, FAI, LinQ2 Ready, BC800 Enclosure
Regular price
$1,136.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix MAXIMAL77FE | Power Supply/Chargers, Expand able, Dual 24V...
Regular price
$1,136.66
Unit price
Description
Description
Maximal77FE Expandable Power System provides system designers and installers with optimum power choices and the highest levels of versatility. It provides 24VDC via two (2) single output power supply/chargers. System includes AC fail, low battery and battery presence monitoring. Enclosure facilitates up to four (4) 12VDC/12AH batteries. All interconnecting equipment must be UL Listed.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 120VAC 60Hz, 9.0A input.
Output
- 24VDC outputs
- Maximum output current Options:
- A) 24VDC @ 10A plus 24VDC @ 10A.
- Non power-limited outputs.
- Aux. power-limited output rated @ 1A (unswitched).
- Over Voltage Protection.
Fuse Ratings
- Power Supply input fuses rated @ 6.3A/250V.
Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail & presence supervision (form "C" contacts).
- Low power shutdown. Prevents deep battery discharge.
Weights (approximate)
| Product Weight | 32.6 Lbs. (14.8 kg). |
|---|---|
| Shipping Weight | 39.75 Lbs. (18 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=152141 |
Documents and Downloads
Documents and Downloads
- Altronix MAXIMAL77FE Data Sheet
- Altronix MAXIMAL77FE Data Sheet
- Altronix MAXIMAL77FE Fichas Tecnicas
- Altronix MAXIMAL77FE Installation Instructions
- Altronix MAXIMAL77FE Altronix_MAXIMAL77FE_Power_Supply_Installation_Instructions_prior_to_May._4,_2015.pdf
- Altronix MAXIMAL77FEInstallation Instructions prior to Jan. 10, 2015
- Altronix MAXIMAL77FE Guia de Instalacion
- Altronix MAXIMAL77FE Revit File
- Altronix MAXIMAL77FE Lifetime Warranty
