Brand: Altronix
|
SKU:
393056

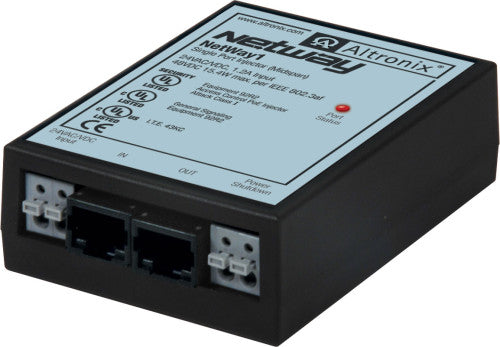

Altronix NetWay1 | Midspan Injector, Single Port, 10/100, PoE, 15W, 24VAC/VDC, Shutdown Trigger
Regular price
$73.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NetWay1 | Midspan Injector, Single Port, 10/100, PoE, 15W,...
Regular price
$73.10
Unit price
Description
Description
Altronix NetWay1 single port midspan PoE-compliant power injector provides power and passes data (e.g. video) for PoE-compliant devices. Devices may be located up to 100m from NetWay1. A NetWayXT repeater module can be utilized to extend the distance for an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1 is capable of supporting non-
PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
Specifications
Specifications
Enclosure
- Modular plastic case.
- Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Input
- 24VAC @ 1.2A or 24VDC @ 1.2A.
Data
- One (1) PoE port provides power and passes data over ethernet (CAT5) cable up to 100m.
- Data rate: 10/100 Base-T compliant.
Output Power
- Port provides up to 15.4W max.
- IEEE 802.3af compliant.
- 48VDC.
- Short circuit protection.
Functions
- Port status LED.
- PoE manual shutdown (For UL 60950-1 applications only).
- Auto detection and protection of legacy non-PoE cameras/devices.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
Weights (approximate)
| Product Weight | 0.2 Lbs. (0.1 kg). |
|---|---|
| Shipping Weight | 0.25 Lbs. (0.11 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1506 |
