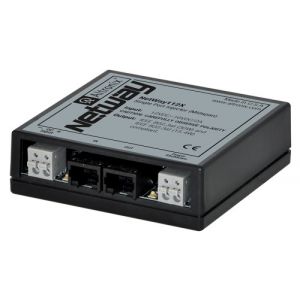

Altronix NETWAY112X | Midspan Injector, Single Port, 10/100 PoE+, 30W, 12VDC, Shutdown Trigger
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY112X | Midspan Injector, Single Port, 10/100 PoE+, 3...
Description
Description
Altronix NetWay112X single port midspan/injector provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay112X. A NetWayXTX repeater module can be utilized to extend the distance for an additional100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay112 is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
Altronix - NETWAY112X - Features
- Modular plastic case. VB6
- 12VDC to 16VDC at 2A
- 48VDC, up to 30W max
- IEEE 802.3at and IEEE 802.3af compliant
- Short circuit protection
- Connectivity: RJ45, auto-crossover
Specifications
Specifications
Altronix - NETWAY112X - Overview
- Input
- 12VDC to 16VDC at 2A
- Output
- 48VDC, up to 30W max.
- IEEE 802.3at and IEEE 802.3af compliant.
- Short circuit protection.
- Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e.
- Distance: up to 100m.
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- Indicators (LED)
- LED: Power/Port status.
- Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active.
- Temperature
- Operating: 0° C to 40° C (32° F to 104° F).
- Storage: - 40° C to 70° C (-40° to 158° F).
- Relative Humidity 85% +/- 5%.
- Operating Altitude
- - 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
Altronix - NETWAY112X - Specifications
| UNSPSC Code | 43222600.0 |
|---|---|
| Type | Midspan |
| Agency Listings | CE Compliant |
| Dimensions (approximate) | 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D). |
Altronix - NETWAY112X - Weights (approximate)
| Product Weight | 0.25 Lbs. (0.11 kg). |
|---|---|
| Shipping Weight | 0.3 Lbs. (0.14 kg). |
