Brand: Altronix
|
SKU:
10216066

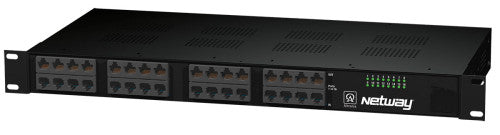

Altronix NETWAY16V | Midspan Injector, 16 Port, 10/100, PoE/PoE+, 300W, 220VAC
Regular price
$924.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY16V | Midspan Injector, 16 Port, 10/100, PoE/PoE+, 3...
Regular price
$924.09
Unit price
Description
Description
Altronix NetWay16V Midspans provide power and pass data (video) for PoE compliant cameras/devices. Sixteen ports in a space saving 1U EIA 19" rack mount chassis. Cameras/devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m. for a total range of up to 200m. A maximum range of 600m. is possible using multiple repeaters, based on camera/device port requirement. NetWay Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras by utilizing NetWay1512 or NetWay3012 adapters.
Main Features
- Easy plug and play installation.
- Safe and cost effective power distribution over CAT5/5E/6 LAN infrastructure.
- Automatic detection and protection of legacy non-PoE cameras.
- Port status LED indicators.
- Illuminated master power disconnect circuit breaker with manual reset (switch).
- IEC 320 - 3-wire grounded line cord (detachable).
Specifications
Specifications
Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Input
- 220VAC 50/60Hz, 2.5A.
- Primary fuse (internal) is rated at 5A/250V.
Power
- Unit provides up to 30W max. full power per port.
- Total power: 300W.
- IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant.
- Short circuit protection.
Functions
- Auto detection and protection of legacy non-PoE cameras/edge devices.
Temperature
- Operating: - 20° C to 40° C (-4° F to 104° F).
- Storage: - 20° C to 70° C (-4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 154 BTU/Hr.
- System AC input VA requirement: 550VA.
Weights (approximate)
| Product Weight | 6.15 Lbs. (2.79 kg). |
|---|---|
| Shipping Weight | 8.45 Lbs. (3.83 kg). |
