Brand: Altronix
|
SKU:
742799

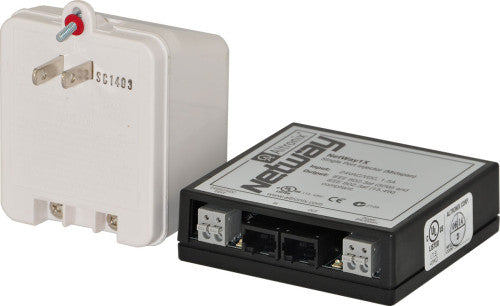

Altronix NETWAY1XP | Midspan Injector, Single Port, 10/100, PoE/PoE+, 30W, 24VAC/VDC, Shutdown Trigger, Includes Plugin Transformer
Regular price
$107.27
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY1XP | Midspan Injector, Single Port, 10/100, PoE/PoE...
Regular price
$107.27
Unit price
Brand: Altronix
|
SKU:
742799
Regular price
$107.27
Unit price
Description
Description
NetWay1X is a single port midspan PoE/PoE+ compliant power injector which provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay1X. A NetWayXTX repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1X is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter. Altronix TP2450 plug-in transformer is included.
Specifications
Specifications
Dimensions (approximate)
- 3.5"W x 3.5"L x 1"H (88.89 mm W x 88.89 mm L x 25.4 mm H).
Input
- 24VAC @ 1.5A or 24VDC @ 1.5A.
- TP2450 plug-in transformer (included).
Data
- One (1) PoE/PoE+ port provides power and passes data over ethernet (CAT5) cable up to 100m.
- Data rate: 10/100 Base-T compliant.
Output Power
- Port provides up to 30W max.
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- Short circuit protection.
Functions
- Port status LED.
- PoE manual shutdown (For UL 60950-1 applications only).
- Auto detection and protection of legacy non-PoE cameras/devices.
Temperature
- Operating:
- 48VDC, 30W: 0° C to 45° C (32° F to 113° F).
- 24VAC, 30W: 0° C to 37° C (32° F to 98.6° F).
- Storage:
- - 20° to 70° C ( -4° to 158° F).
- Relative Humidity 85% +/- 5%.
Weights (approximate)
| Product Weight | 1.54 Lbs. (0.7 kg). |
|---|---|
| Shipping Weight | 1.8 Lbs. (0.82 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
