Brand: Altronix
|
SKU:
10192853

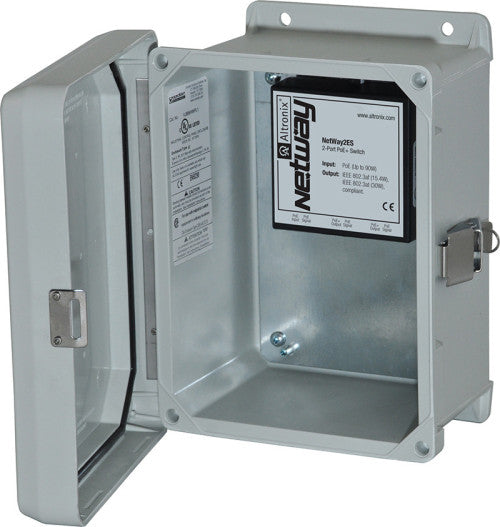

Altronix NETWAY2ESWPN | PoE-powered 2 port PoE/PoE+ Switch. NEMA4/4X rated, Outdoor enclosure.
Regular price
$451.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY2ESWPN | PoE-powered 2 port PoE/PoE+ Switch. NEMA4/4...
Regular price
$451.37
Unit price
Description
Description
Altronix NETWAY2ESWPN | PoE-powered 2 port PoE/PoE+ Switch. NEMA4/4X rated, Outdoor enclosure.
Altronix NetWay2ESWPN 2-port PoE/PoE+ switch is designed to deploy 2-IP devices over a single CAT5 or higher structured cable. PoE is passed from a midspan injector.
Altronix NetWay2ESWPN 2-port PoE/PoE+ switch is designed to deploy 2-IP devices over a single CAT5 or higher structured cable. PoE is passed from a midspan injector.
Altronix - NETWAY2ESWPN - Features and Specifications
- Ethernet Input
- 802.3bt PoE up to 90W or 802.3at up to 30W or 802.3af up to 15W.
- Ethernet
- 2-PoE+ ports, IEEE 802.3af and 802.3at compliant
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e or better structured cable.
- Distance: up to 100m.
- Speed: 10/100 BaseT, half/full duplex, auto negotiation.
- Indicators (LED)
- Yellow/Green LEDs (by RJ45 jack):
- IP Link status, 10/100 Base-T/active.
- Green LED:
- Input/Output PoE on.
Specifications
Specifications
Altronix - NETWAY2ESWPN - Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Dimensions 7.32"W x 9.5"H x 4.92"D (185.9 mm W x 236.7 mm H x 125 mm D).
Altronix - NETWAY2ESWPN - Temperature
- Operating: -20ºC to 75ºC (-4ºF to 167ºF).
- Storage: -40ºC to 75ºC (-40ºF to 167ºF).
- Relative Humidity 85% +/-5%.
- Operating Altitude
- -304.8 to 2,000m.
Altronix - NETWAY2ESWPN - Specifications
| UNSPSC Code | 43222600 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - NETWAY2ESWPN - Weights (approximate)
| Product Weight: | 3.7 Lbs. (1.68 kg). |
|---|---|
| Shipping Weight | 5 Lbs. (2.27 kg). |
Altronix - NETWAY2ESWPN - Accessories
| NetWay1BT | Midspan Injector, Single Port 802.3bt, 10/100/1000, PoE/PoE+/Hi-PoE, Aux. Class 2 power-limited output rated @ 56VDC/90W, 115/230VAC |
|---|---|
| NetWaySP1BT | 2-Port Ethernet to Fiber Hardened 802.3bt 4PPoE Switch/Media converter, Single 1G Fiber Optic SFP, single port 10/100/1000, Supports 90W, Requires 48-56V input, Modular plastic case |
