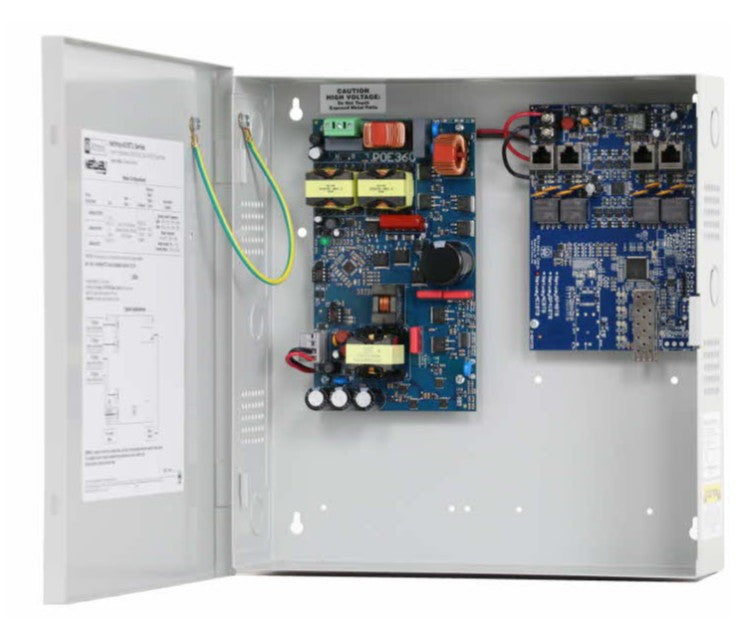

Altronix NETWAY4E1BTX3 | 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA1 Rated Indoor Enclosure
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY4E1BTX3 | 4-port Hardened 802.3bt 4PPoE Switch and P...
Description
Description
Altronix NetWay4E1BTX3 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with one (1) 1Gb SFP port to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWay4E1BTX3 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors.
Altronix - NETWAY4E1BTX3 - Features
- Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 360W total power)
- IEEE 802.3af, 802.3at, 802.3bt compliant
- One (1) Gigabit SFP port
- Built-in charger for sealed lead acid or gel type batteries
- CE European Conformity
- NEMA 4/4X, IP66-11 enclosure
Specifications
Specifications
Altronix - NETWAY4E1BTX3 - Specifications
| Input Voltage | 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A |
|---|---|
| Power Output | Four (4) PoE ports rated at 90W each, 360W total power |
| SFP Ports | One (1) Gigabit SFP port |
| Ethernet Ports | Four (4) 10/100/1000 Mbps ports |
| Indicators (LED) | Individual PoE On LEDs for each port |
| Operating Temperature | 360W: – 40ºC to 45ºC (– 40ºF to 113ºF) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr. (approx.) | 183 BTU/Hr |
| Operating Altitude | - 304.8 to 2,000m |
| Dimensions | 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D) |
| Weights (approximate) | 6.65 Lbs. (3.02 kg) |
