Brand: Altronix
|
SKU:
10285596

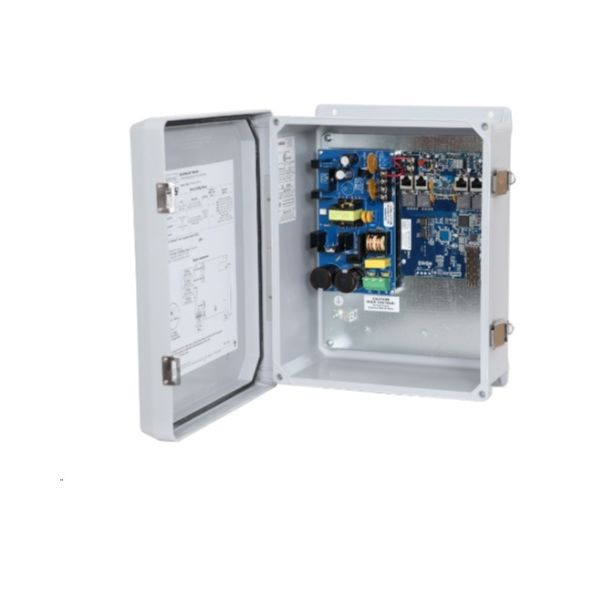

Altronix NETWAY4E1WP | 4-port Hardened PoE Switch with Power Supply/Charger; NEMA4/4X, IP66 rated Outdoor enclosure
Regular price
$835.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY4E1WP | 4-port Hardened PoE Switch with Power Supply...
Regular price
$835.31
Unit price
Description
Description
Altronix NETWAY4E1WP | 4-port Hardened PoE Switch with Power Supply/Charger; NEMA4/4X, IP66 rated Outdoor enclosure
Fusing: 5A/250V.
PoE/PoE+ (up to 30W) ports.
IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
120W total power.
Integral surge protection.
Failover: Upon AC loss, instantaneous.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
75W: - 40° C to 70° C ( - 40° F to 158° F).
100W: - 40° C to 55° C ( - 40° F to 131° F).
120W: - 40° C to 45° C ( - 40° F to 113° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Input
Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.Fusing: 5A/250V.
Power Output / Maximum Power:
Four (4) 10/100/1000 Mbps.PoE/PoE+ (up to 30W) ports.
IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
120W total power.
Integral surge protection.
Fiber Port
One (1) Gigabit SFP (Fiber) port.Back-up Battery (not included)
Type: Sealed lead acid or gel type.Failover: Upon AC loss, instantaneous.
Indicators (LED)
Individual PoE On LEDs for each port.Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
Temperature / Operating:
60W: - 40° C to 75° C ( - 40° F to 167° F).75W: - 40° C to 70° C ( - 40° F to 158° F).
100W: - 40° C to 55° C ( - 40° F to 131° F).
120W: - 40° C to 45° C ( - 40° F to 113° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m.Overview
- Altronix NetWay4E1WP Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit.
Specifications
Specifications
Altronix - NETWAY4E1WP - Overview
- Altronix NetWay4E1WP Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit.
Altronix - NETWAY4E1WP - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | NETWAY4E1WP |
| Item Description | 4-port Hardened PoE Switch with Power Supply/Charger; NEMA4/4X, IP66 rated Outdoor enclosure |
| Agency Listings | CE Compliant |
| Weights (approximate): | - |
| Product Weight: | 10.32 Lbs. |
| (4.68 kg). | Shipping Weight: |
| 11.7 Lbs. | (5.3 kg). |
