Brand: Altronix
|
SKU:
10311070

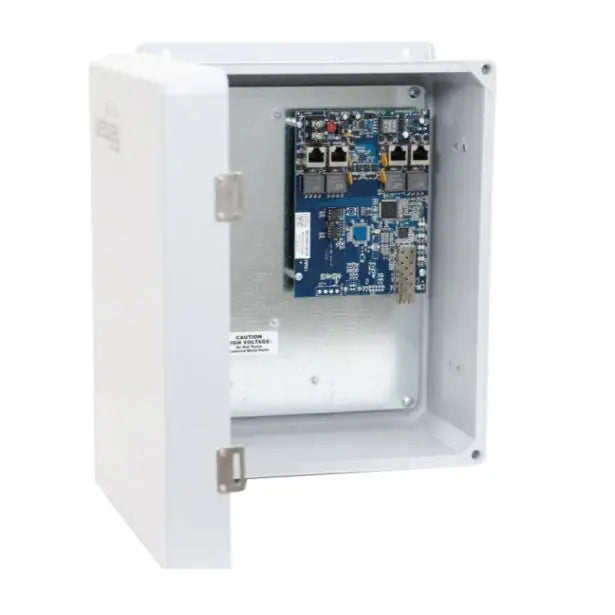

Altronix NETWAY4E1WPN | 4-port Hardened PoE Switch; NEMA4/4X rated Outdoor enclosure
Regular price
$776.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY4E1WPN | 4-port Hardened PoE Switch; NEMA4/4X rated ...
Regular price
$776.54
Unit price
Description
Description
Altronix NETWAY4E1WPN | 4-port Hardened PoE Switch; NEMA4/4X rated Outdoor enclosure
PoE/PoE+ (up to 30W) ports.
IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
120W total power.
(external power supply required)
Integral surge protection.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%.
Input
Voltage: 48V-56V (UL Listed ITE power supply).Power Output / Maximum Power:
Four (4) 10/100/1000 Mbps.PoE/PoE+ (up to 30W) ports.
IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
120W total power.
(external power supply required)
Integral surge protection.
Fiber Port
One (1) Gigabit SFP port.Indicators (LED)
Individual PoE On LEDs for each port.Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
Temperature
Operating (120W): -40ºC to 75ºC (-40ºF to 167ºF).Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%.
Operating Altitude
- 304.8 to 2,000m.Overview
- Altronix NetWay4E1WPN Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit.
Specifications
Specifications
Altronix - NETWAY4E1WPN - Overview
- Altronix NetWay4E1WPN Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit.
Altronix - NETWAY4E1WPN - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | NETWAY4E1WPN |
| Item Description | 4-port Hardened PoE Switch; NEMA4/4X rated Outdoor enclosure |
| Agency Listings | CE Compliant |
| Weights (approximate): | - |
| Product Weight: | 7.7 Lbs. |
| (3.49 kg). | Shipping Weight: |
| 10 Lbs. | (4.54 kg). |
