Altronix NETWAY4E1X | 4-port Hardened PoE Switch with Power Supply/...
Regular price
$764.02
Unit price
Description
Description

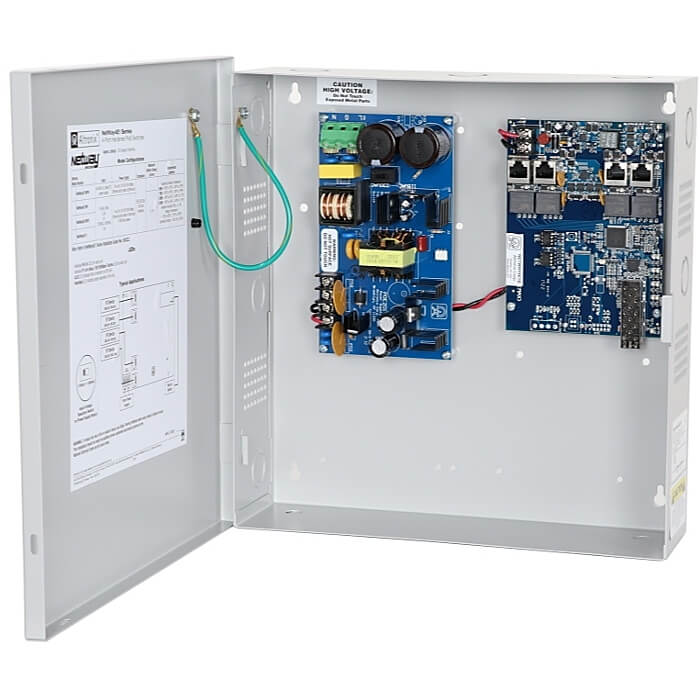

Altronix NETWAY4E1X | 4-port Hardened PoE Switch with Power Supply/Charger; NEMA1 rated Indoor enclosure
Fusing: 5A/250V.
PoE/PoE+ (up to 30W) ports.
IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
120W total power.
Integral surge protection.
Failover: Upon AC loss, instantaneous.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
Storage: -30ºC to 85ºC (-22ºF to 185ºF).
Relative Humidity: 85% +/-5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Input
Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.Fusing: 5A/250V.
Power Output / Maximum Power:
Four (4) 10/100/1000 Mbps.PoE/PoE+ (up to 30W) ports.
IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
120W total power.
Integral surge protection.
Fiber Port
One (1) Gigabit SFP (Fiber) port.Back-up Battery (not included)
Type: Sealed lead acid or gel type.Failover: Upon AC loss, instantaneous.
Indicators (LED)
Individual PoE On LEDs for each port.Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
Temperature
Operating (120W): -40ºC to 50ºC (-40ºF to 122ºF).Storage: -30ºC to 85ºC (-22ºF to 185ºF).
Relative Humidity: 85% +/-5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m.Overview
- Altronix NetWay4E1X Indoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit.
Specifications
Specifications
Altronix - NETWAY4E1X - Overview
- Altronix NetWay4E1X Indoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit.
Altronix - NETWAY4E1X - Product Categories
- Security
- Access Control
- Panels
Altronix - NETWAY4E1X - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | NETWAY4E1X |
| Item Description | 4-port Hardened PoE Switch with Power Supply/Charger; NEMA1 rated Indoor enclosure |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 6.65 Lbs. |
| (3.02 kg). | Shipping Weight: |
| 7.55 Lbs. | (3.42 kg). |
