Altronix NETWAY4EBTWPX | Single 1G Fiber Optic SFP, 4 Ports 10/100/...
Description
Description

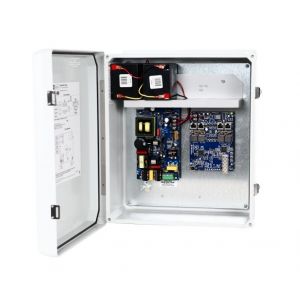

Altronix NetWay4EBTWPX supports up to 90W per port (240W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with one (1) 1Gb SFP port to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTWPX accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-endmedia converters/injectors. Embedded LINQ Technology allows to monitor, control,andreport power and diagnostics from anywhere.
Altronix - NETWAY4EBTWPX - Features
- NEMA 4/IP 66 Rated enclosure for outdoor use.
- Accommodates up to two (2) 12VDC/4AH Batteries.
- Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A
- Four (4) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Individual PoE On LEDs for each port
Specifications
Specifications
Altronix - NETWAY4EBTWPX - Overview
- Input
- Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A
- Fusing: 5A/250V
- Power Output
- Maximum Power: Four (4) PoE ports rated at 90W each, 240W total power
- IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant
- Integral surge protection
- SFP Ports
- One (1) Gigabit SFP port
- Ethernet Ports
- Four (4) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
- Back-up Battery
- Type: 24VDC charging circuit charges LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type batteries (require separate ventilated enclosure)
- Failover: Upon AC loss, instantaneous
- Indicators (LED)
- Individual PoE On LEDs for each port
- Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
- ALOS LED indicates fiber connection for SFP port
- Heartbeat LED indicates proper operation of the unit
- VLAN
- Multiple management VLAN assignment
- 802.1Q Tagged VLAN
- Up to 10 VLAN groups. ID Range 2-4095.
- LINQ Technology
- Remote network management allows for camera/device reset and diagnostic monitoring
- Provides local and/or remote access to critical information via LAN/WAN
- Email and Windows Dashboard Alert notifications report real-time events
- Event log tracks history
- Temperature
- Operating (240W): - 30ºC to 55ºC (- 22ºF to 131ºF)
- Operating (180W): - 30ºC to 65ºC (- 22ºF to 149ºF)
- Operating (150W): - 30ºC to 75ºC (- 22ºF to 167ºF)
- Storage: - 30ºC to 85ºC (- 22ºF to 185ºF)
- Relative Humidity: 85% +/- 5%
- BTU/Hr (approx.): 61 BTU/Hr
- Operating Altitude
- -304.8 to 2,000m
Altronix - NETWAY4EBTWPX - Specifications
| UNSPSC Code | 43222612.0 |
|---|---|
| Agency Listings | CE Compliant |
| Dimensions (approximate) | 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D). |
Altronix - NETWAY4EBTWPX - Weights (approximate)
| Product Weight | 15 Lbs. (6.8 kg). |
|---|---|
| Shipping Weight | 17.5 Lbs. (7.9 kg). |
