Altronix NETWAY5BTQ | 5-port Managed Hardened 802.3bt 4P PoE Switch...
Description
Description

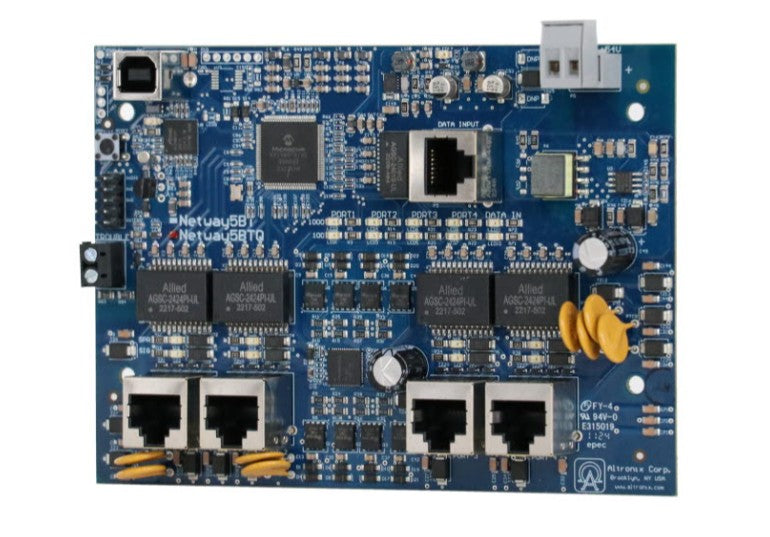

Altronix NetWay5BTQ is a space-saving network managed hardened 802.3bt 4PPoE switch board that mounts easily inside of Altronix enclosures, improving installation efficiency. It is an ideal solution in all Maximal and Trove series products, a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each, with 240W total power – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance. Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics.
Altronix - NETWAY5BTQ - Features
- Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports
- IEEE802.3af/3at/3bt compliant
- Total power: 240W NetWay5BT
- PoE activity LED indicators
- CE European Conformity
- Management interface software included (USB flash drive)
Specifications
Specifications
Altronix - NETWAY5BTQ - Specifications
| Input Voltage | 48-56V UL Listed ITE power supply |
|---|---|
| Power Output | Four (4) 10/100/1000 Mbps PoE/PoE+ (rated up to 90W) ports 240W total power |
| Uplink Port | Single data port |
| Ethernet Ports | Five (5) 10/100/1000 Mbps ports |
| Indicators (LED) | Individual PoE On LEDs for each port |
| Operating Temperature | 240W: – 30ºC to 55ºC (– 22ºF to 131ºF) |
| Relative Humidity | 85% +/- 5% |
| Operating Altitude | - 304.8 to 2,000m |
| Dimensions | 4"W x 5.625"L x 0.75"H (101.6 mm W x 142.9 mm L x 19 mm H) |
| Weights (approximate) | 0.25 Lbs. (0.11 kg) |
Documents and Downloads
Documents and Downloads
