Brand: Altronix
|
SKU:
10522350
Altronix NETWAY5BTWPN | 5-port Hardened 802.3bt 4PPoE Switch - NEMA4/4X Rated Outdoor Enclosure
Regular price
$874.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY5BTWPN | 5-port Hardened 802.3bt 4PPoE Switch - NEMA...
Regular price
$874.07
Unit price
Description
Description

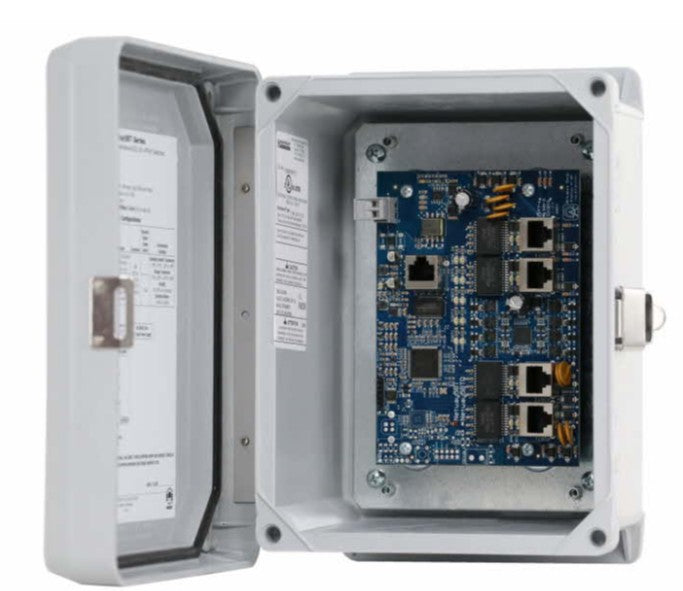

Altronix NETWAY5BTWPN | 5-port Hardened 802.3bt 4PPoE Switch - NEMA4/4X Rated Outdoor Enclosure
Altronix NetWay5BTWPN hardened 4PPoE switch provides a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each. It can power IP devices, such as PoE access controllers and cameras. Other applications may include integrating network door access systems with video surveillance.
Altronix - NETWAY5BTWPN - Features
- Four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each
- IEEE802.3af/3at/3bt compliant
- PoE activity LED indicators NetWay5BTWPN
- NEMA4/4X, IP66 Rated enclosure for outdoor use
- CE European Conformity
Specifications
Specifications
Altronix - NETWAY5BTWPN - Specifications
| Input Voltage | 48-56V UL Listed ITE power supply |
|---|---|
| Power Output | Four (4) 1IEEE802.3af/3at/3bt PoE ports rated at 90W each |
| Uplink Port | Single data port |
| Ethernet Ports | Five (5) 10/100/1000 Mbps ports |
| Indicators (LED) | Individual PoE On LEDs for each port |
| Operating Temperature | 240W: – 30ºC to 55ºC (– 22ºF to 131ºF) |
| Relative Humidity | 85% +/- 5% |
| Operating Altitude | - 304.8 to 2,000m |
| Dimensions | 7.32"W x 9.5"H x 4.92"D (185.9 mm W x 236.7 mm H x 125 mm D) |
| Weights (approximate) | 2.2 Lbs. (1.01 kg) |
Documents and Downloads
Documents and Downloads
