Altronix NETWAY5BTX | 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA1 Rated Indoor Enclosure
Regular price
$963.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY5BTX | 5-port Hardened 802.3bt 4PPoE Switch with Pow...
Regular price
$963.64
Unit price
Description
Description
Altronix NETWAY5BTX | 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA1 Rated Indoor Enclosure

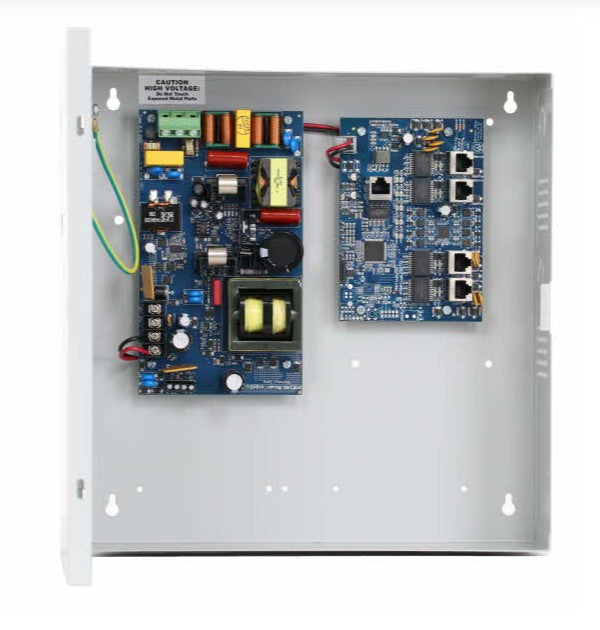

Altronix NetWay5BTX powered hardened 4PPoE switch provides a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each, with 240W total power. It can power IP devices, such as PoE access controllers and cameras. Other applications may include integrating network door access systems with video surveillance.
Altronix - NETWAY5BTX - Features
- Four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each
- IEEE802.3af/3at/3bt compliant
- 240W total power
- Built-in charger for sealed lead acid or gel or LiFePO4 NetWay5BTWPX (lithium iron phosphate) type batteries
- Automatic switch over to stand-by battery when AC fails
Specifications
Specifications
Altronix - NETWAY5BTX - Specifications
| Input Voltage | 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A |
|---|---|
| Power Output | Four (4) 1IEEE802.3af/3at/3bt PoE ports rated at 90W each IEEE802.3af/3at/3bt compliant 240W total power |
| Uplink Port | Single data port |
| Ethernet Ports | Five (5) 10/100/1000 Mbps ports |
| Indicators (LED) | Individual PoE On LEDs for each port |
| Operating Temperature | 240W: – 30ºC to 55ºC (– 22ºF to 131ºF) |
| Relative Humidity | 85% +/- 5% |
| Operating Altitude | - 304.8 to 2,000m |
| Dimensions | 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D) |
| Weights (approximate) | 6.65 Lbs. (3.02 kg) |
| BTU/Hr. (approx.) | 123 BTU/Hr |
