Description
Description

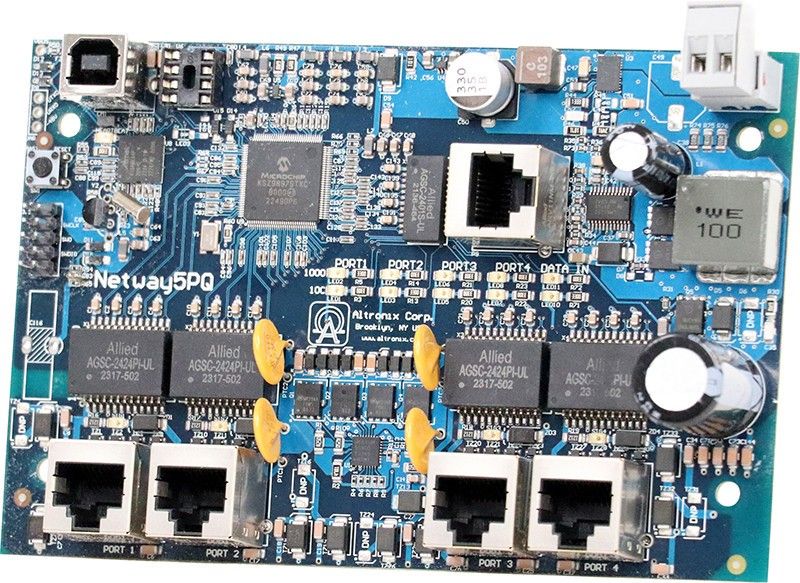

Altronix Netway5PQ is a space-saving network managed hardened PoE+ switch board that mounts easily inside of Altronix enclosures, improving installation efficiency. It is an ideal solution in all Maximal and Trove series products, providing power for up to four (4) IP devices, such as PoE access controllers and cameras utilizing a single Ethernet cable going to the headend. Other applications may include solar power, as well as integrating network door access systems with video surveillance. Features embedded LINQ Technology to remotely monitor, control, and report power/diagnostics.
Altronix - NETWAY5PQ - Features
- Input Power
- 12 or 24VDC from a UL Listed power source or a solar panel with nominal 24V (~12-35V) output
- 24VDC, current draw: 120W
- 12VDC, current draw: 120W
- Power Output
- Maximum Power
- Four (4) 10/100/1000 Mbps
- PoE/PoE+ (rated up to 30W) ports 60W (at 12VDC) or 120W (at 24VDC) total power
- Integral surge protection
- Uplink Port
- Single data port
- Ethernet Ports
- Five (5) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5 or better structured cable
- Distance: up to 100m
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
- LINQ Technology
- Remote network power management allows for device reset and monitoring
- Provides local and/or remote access to critical information via LAN/WAN
- Email and Windows Dashboard Alert notifications report real-time diagnostics
- Event log tracks history
- VLAN
- Multiple management VLAN assignment
- 802.1Q Tagged VLAN
- Up to 10 VLAN groups. ID Range 2-4095
- LED Indicators
- Individual
- PoE On
- LEDs for each port
- Individual
- IP Link status, 10/100Base-T/active
- LEDs for each port
- Temperature
- Operating 30ºC to 70ºC (22ºF to 158ºF)
- Storage: 40ºC to 85ºC (40ºF to 185ºF)
- Relative Humidity: 85% +/5%
- Operating Altitude: -304.8 to 2,000m
- Operating Altitude
- 304.8 to 2,000m
- Mounting hardware is included
Specifications
Specifications
Altronix - NETWAY5PQ - Product Categories
- Racks, Cabinets and Enclosures
- Rack, Cabinet and Enclosure Accessories
- Mounting Rails and Panels
Altronix - NETWAY5PQ - Specifications
| UNSPSC Code | 24102001 |
|---|
