Brand: Altronix
|
SKU:
10522355
Altronix NETWAY5PX | 5-port Hardened PoE+ Switch with Power Supply/Charger - NEMA1 Rated Indoor Enclosure BC300
Regular price
$860.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY5PX | 5-port Hardened PoE+ Switch with Power Supply/...
Regular price
$860.31
Unit price
Description
Description

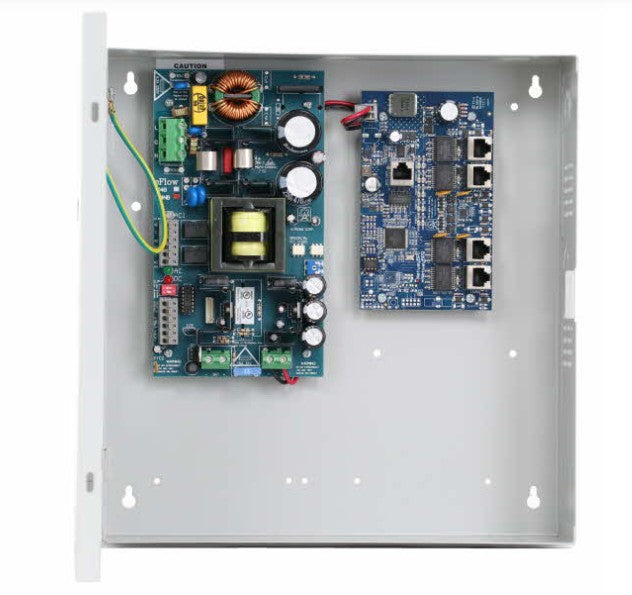

Altronix NETWAY5PX | 5-port Hardened PoE+ Switch with Power Supply/Charger - NEMA1 Rated Indoor Enclosure BC300
Altronix NetWay5PX powered hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance.
Altronix - NETWAY5PX - Features
- Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports
- IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
- 120W total power
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switch over to stand-by battery when AC fails NetWay5PWPX
- PoE activity LED indicators
- NEMA4/4X, IP66 Rated enclosure for outdoor use
- Accommodates two (2) 12VDC/7AH batteries
- CE European Conformity
Specifications
Specifications
Altronix - NETWAY5PX - Specifications
| Input Voltage | 120VAC, 60Hz, 4.5A |
|---|---|
| Power Output | Four (4) 10/100/1000 Mbps |
| Uplink Port | Single data port |
| Ethernet Ports | Five (5) 10/100/1000 Mbps ports |
| Indicators (LED) | Individual PoE On LEDs for each port |
| Operating Temperature | - 30ºC to 70ºC (- 22ºF to 158ºF) |
| Relative Humidity | 85% +/- 5% |
| Operating Altitude | - 304.8 to 2,000m |
| Dimensions | 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D) |
| Weights (approximate) | 6.65 Lbs. (3.02 kg) |
