Brand: Altronix
|
SKU:
10216061

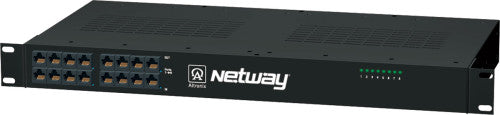

Altronix NETWAY8V | Midspan Injector, 8 Port, 10/100, PoE/PoE+, 150W, 220VAC
Regular price
$611.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAY8V | Midspan Injector, 8 Port, 10/100, PoE/PoE+, 150...
Regular price
$611.58
Unit price
Description
Description
Altronix NETWAY8V | Midspan Injector, 8 Port, 10/100, PoE/PoE+, 150W, 220VAC
Altronix NetWay8V Midspans provide power and pass data (video) for PoE compliant cameras/devices. Eight ports in a space saving 1U EIA 19" rack mount chassis. Cameras/devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement. NetWay Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras by utilizing NetWay1512 or NetWay3012 adapters.
Altronix NetWay8V Midspans provide power and pass data (video) for PoE compliant cameras/devices. Eight ports in a space saving 1U EIA 19" rack mount chassis. Cameras/devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement. NetWay Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras by utilizing NetWay1512 or NetWay3012 adapters.
Altronix - NETWAY8V - Features and Specifications
- INPUT
- 220VAC 50/60Hz, 1.8A.
- Primary fuse (internal) is rated at 5A/250V.
- Power
- Unit provides up to 30W max. full power per port.
- Total power: 150W.
- IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant.
- Short circuit protection.
- Functions
- Auto detection and protection of legacy non-PoE cameras/edge devices.
- Easy plug and play installation.
- Safe and cost effective power distribution over CAT5/5E/6 LAN infrastructure.
- Automatic detection and protection of legacy non-PoE cameras.
- Port status LED indicators.
- Illuminated master power disconnect circuit breaker with manual reset (switch).
- IEC 320 - 3-wire grounded line cord (detachable).
Specifications
Specifications
Altronix - NETWAY8V - Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Altronix - NETWAY8V - Temperature
- Operating: - 20ºC to 40ºC ( - 4ºF to 104ºF).
- Storage: - 20º to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 77 BTU/Hr.
- System AC input VA requirement: 396VA.
- Operating Altitude
- - 304.8 to 3,048m.
Altronix - NETWAY8V - Specifications
| Type | MIDSPAN |
|---|---|
| UNSPSC Code | 43222600 |
| Agency Listing | CE Compliant |
Altronix - NETWAY8V - Weights (approximate)
| Product Weight: | 5.15 Lbs. (2.34 kg). |
|---|---|
| Shipping Weight | 7.45 Lbs. (2.93 kg). |
Altronix - NETWAY8V - Accessories
| NetWay1512 | PoE Adapter, Converts PoE into 12VDC @ 15W |
|---|---|
| NetWay3012 | PoE Adapter, Converts PoE+ into 12VDC @ 30W |
| NetWayXT | Ethernet Extender, 1 Port, 10/100, Passes PoE, Extends Data additional 100m |
| NetWayXTX | Ethernet Extender, 1 Port, 10/100, Passes PoE/PoE+, Extends Data additional 100m |
