Altronix NETWAYSP1BT | 2-Port Ethernet to Fiber Hardened 802.3bt 4PPoE Switch/Media converter, Single 1G Fiber Optic SFP, single port 10/100/1000, Supports 90W, Requires 48-56V input, Modular plastic case
Regular price
$417.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAYSP1BT | 2-Port Ethernet to Fiber Hardened 802.3bt 4P...
Regular price
$417.36
Unit price
Description
Description
Altronix NETWAYSP1BT | 2-Port Ethernet to Fiber Hardened 802.3bt 4PPoE Switch/Media converter, Single 1G Fiber Optic SFP, single port 10/100/1000, Supports 90W, Requires 48-56V input, Modular plastic case

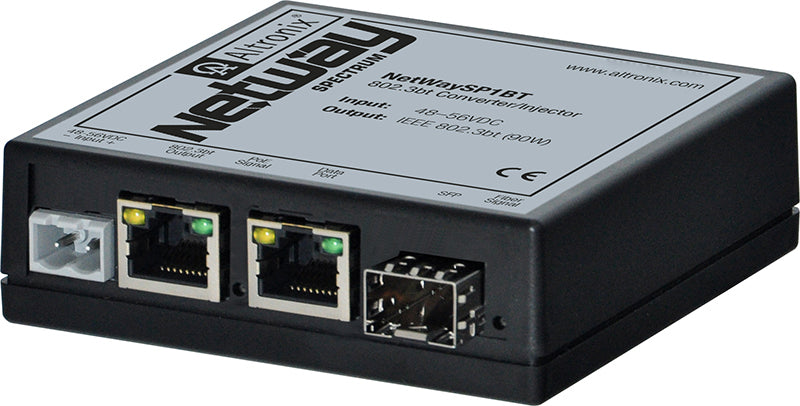

Altronix NetWaySP1BT 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmitdata. Units can be deployed with structured cable, conventional single/multimode fiber orcomposite cable (fiber + copper combined).
Altronix NetWaySP1BT 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmitdata. Units can be deployed with structured cable, conventional single/multimode fiber orcomposite cable (fiber + copper combined).
Altronix - NETWAYSP1BT - Features and Specifications
- INPUT
- 48-56VDC @ 1.9A (95W).
- Fiber Port
- One (1) 1Gb SFP port.
- PoE Port
- Single port rated up to 90W max.
- IEEE 802.3af, 802.3at and 802.3bt compliant
- Data Port
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e and higher.
- Distance: up to 100m.
- Speed: 10/100/1000 Mbps.
- Indicators (LED)
- Yellow/Green LEDs:
- IP Link status, 10/100/1000 Base-T/active.
- Green SFP (Fiber) LED:
- SFP connection.
- Auto detection and protection of legacy non-PoE cameras/devices.
- Compact insulated housing.
- Lifetime Warranty.
Specifications
Specifications
Altronix - NETWAYSP1BT - Enclosure
- Modular plastic case.
- Dimensions 3.8"W x 1"H x 3.38"D (97 mm W x 25 mm H x 86 mm D).
Altronix - NETWAYSP1BT - Temperature
- Operating Temperature:
- Input: 48 - 56VDC; Output (Watts): 90W; Temperature: -40ºC to 75ºC (-40ºF to 167ºF).
- Storage Temperature: - 40ºC to 75ºC ( - 40º to 167ºF).
- Relative Humidity: 85% +/- 5%.
- Operating Altitude
- - 304.8 to 2,000m.
Altronix - NETWAYSP1BT - Specifications
| Device | MEDIA CONVERTERS |
|---|---|
| Port 1 Device Technology | 10GBASE |
| UNSPSC Code | 55101515 |
| Agency Listing | CE Compliant |
Altronix - NETWAYSP1BT - Weights (approximate)
| Product Weight: | 0.25 Lbs. (0.11 kg). |
|---|---|
| Shipping Weight | 0.3 Lbs. (0.14 kg). |
Altronix - NETWAYSP1BT - Accessories
| FTK100 | Fiber Termination Kit |
|---|---|
| P1AB2K | Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit |
| P1GCE | Small Form-Factor Pluggable (SFP) Copper Transceiver |
| P1MM | Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver |
| P1SM10 | Small Form-Factor Pluggable (SFP) Single Mode Transceiver |
