Brand: Altronix
|
SKU:
10266059
Altronix NETWAYSP2PWPX | 2 Port Fiber Media Converter, Hardened 120W Power Supply
Regular price
$1,015.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAYSP2PWPX | 2 Port Fiber Media Converter, Hardened 120...
Regular price
$1,015.37
Unit price
Description
Description
Altronix NETWAYSP2PWPX | 2 Port Fiber Media Converter, Hardened 120W Power Supply

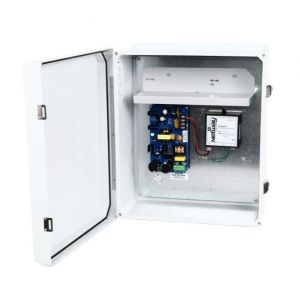

Altronix NetWaySP2PWPX 3-Port PoE+ hardened switch with internal power converts a single Fiber (1000Base-X/SX/LX) into two (2) Ethernet ports (10/100/1000 Mbps) and provides PoE/PoE+ power to connected devices. Mounted in NEMA 4/4X, IP66-11 enclosure, which accommodates four (4) 12VDC/4AH batteries (48V of backup) it features auto detection and protection of legacy non-PoE cameras/devices.
Altronix - NETWAYSP2PWPX - Features
- NEMA 4/IP 66 Rated enclosure for outdoor use.
- Accommodates up to four (4) 12VDC/4AH Batteries.
- 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A
- One (1) 1Gb SFP port
- Two (2) PoE / PoE+ ports, rated up to 30W max
- IEEE 802.3af and IEEE 802.3at compliant
- NEMA 4/4X, IP66-11 enclosure
Specifications
Specifications
Altronix - NETWAYSP2PWPX - Overview
- Input
- 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
- Fiber Ports
- One (1) 1Gb SFP port.
- Output Power
- Two (2) PoE / PoE+ ports, rated up to 30W max.
- IEEE 802.3af and IEEE 802.3at compliant.
- Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e.
- Distance: up to 100m.
- Speed: 10/100/1000 Mbps.
- Indicators (LED)
- Yellow/Green LEDs:
- IP Link status, 10/100/1000 Base-T/active.
- Green PoE LED:
- Indicate PoE present.
- Green SFP (Fiber) LED:
- Indicates SFP connection.
- Features
- Auto detection and protection of legacy non-PoE cameras/devices.
- NEMA 4/4X, IP66-11 enclosure.
- Temperature
- Operating (30W): -40ºC to 70ºC ( -40ºF to 158ºF).
- Storage: - 40ºC to 75ºC ( - 40º to 167ºF).
- Relative Humidity 85% +/- 5%.
- Operating Altitude
- - 304.8 to 2,000m.
Altronix - NETWAYSP2PWPX - Specifications
| UNSPSC Code | 43201553.0 |
|---|---|
| Agency Listings | CE Compliant |
| Dimensions (approximate) | 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D). |
Altronix - NETWAYSP2PWPX - Weights (approximate)
| Product Weight | 15 Lbs. (6.8 kg). |
|---|---|
| Shipping Weight | 17.5 Lbs. (7.9 kg). |
