Brand: Altronix
|
SKU:
10386590

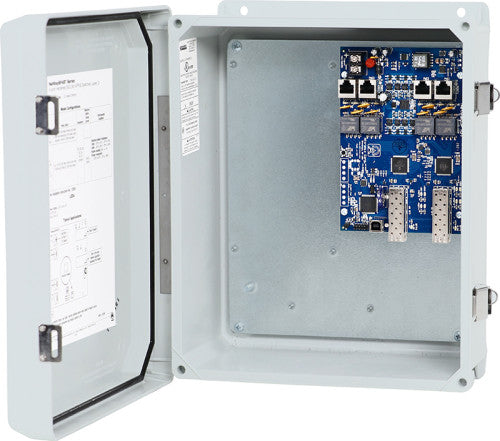

Altronix NETWAYSP41BTWPN | 4-port Hardened 802.3bt 4PPoE Switch (uses external power supply). - NEMA4/4X, IP66 rated Outdoor enclosure.
Regular price
$1,055.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAYSP41BTWPN | 4-port Hardened 802.3bt 4PPoE Switch (us...
Regular price
$1,055.39
Unit price
Description
Description
Altronix NETWAYSP41BTWPN | 4-port Hardened 802.3bt 4PPoE Switch (uses external power supply). - NEMA4/4X, IP66 rated Outdoor enclosure.
IEEE 802.3af, 802.3at, 802.3bt compliant.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher structured cable.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
Operating (180W): -40ºC to 65ºC (-40ºF to 149ºF).
Operating (150W): -40ºC to 75ºC (-40ºF to 167ºF).
Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%.
Input
Voltage: 48V-57V (UL Listed ITE power supply)Output
Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 320W total power).IEEE 802.3af, 802.3at, 802.3bt compliant.
SFP Ports
Two (2) Gigabit SFP port.Ethernet Ports
Four (4) 10/100/1000 Mbps ports.Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher structured cable.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Indicators (LED)
Individual PoE On LEDs for each port.Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
Temperature
Operating (240W): –40ºC to 55ºC (–40ºF to 131ºF).Operating (180W): -40ºC to 65ºC (-40ºF to 149ºF).
Operating (150W): -40ºC to 75ºC (-40ºF to 167ºF).
Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%.
Operating Altitude
- 304.8 to 2,000m.Mounting hardware is included
Overview
- Altronix NetWaySP41BTWPN supports up to 90W per port (320W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP41BTWPN accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors.
Specifications
Specifications
Altronix - NETWAYSP41BTWPN - Overview
- Altronix NetWaySP41BTWPN supports up to 90W per port (320W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP41BTWPN accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors.
Altronix - NETWAYSP41BTWPN - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - NETWAYSP41BTWPN - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | NETWAYSP41BTWPN |
| Item Description | 4-port Hardened 802.3bt 4PPoE Switch (uses external power supply). - NEMA4/4X, IP66 rated Outdoor enclosure. |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 9.5 Lbs. |
| (4.3 kg). | Shipping Weight: |
| 10.9 Lbs. | (4.9 kg). |
