Altronix NETWAYSP41BTX3 | Dual Fiber Optic SFP 1G Link, 4-Port Hard...
Description
Description

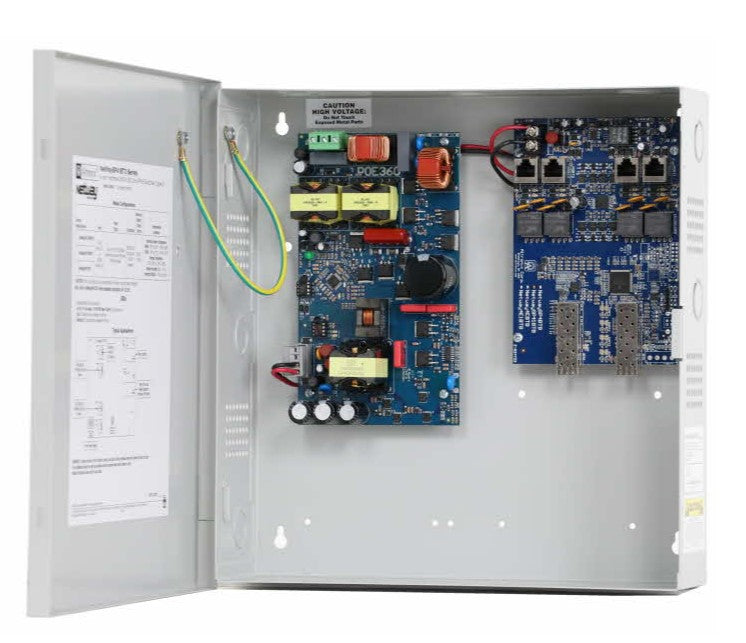

Altronix NetWaySP41BTX3 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP41BTX3 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum headend media converters/injectors.
Specifications
Specifications
Altronix - NETWAYSP41BTX3 - Specifications
| Input Voltage: | 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A |
|---|---|
| Input Fuse: | 5A/250V |
| Power Output Maximum Power | 360W total power |
| SFP Ports: | Two (2) Gigabit SFP ports |
| Battery Charging Type | 48VDC charging circuit charges |
| Enclosure | 13.5" x 13" x 3.25" |
| Shipping | 15" x 13.875" x 4.75" |
| Temperature | – 30ºC to 70ºC (– 22ºF to 158ºF) |
| Storage | – 30ºC to 85ºC (– 22ºF to 185ºF) |
| Relative Humidity | 85% +/– 5% |
| BTU/Hr (approx.) | 183 BTU/Hr. |
| Operating Altitude: | – 304.8 to 2,000m |
