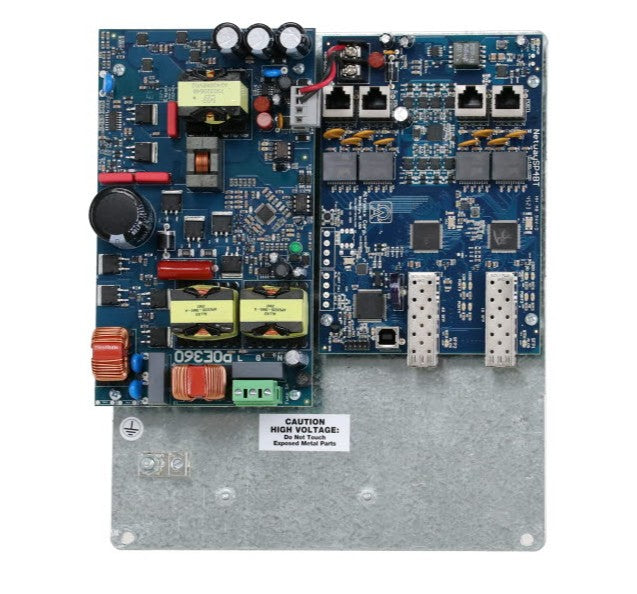

Altronix NETWAYSP4BTPL3 | Dual Fiber Optic SFP 1G Link, 4-port Hard...
Description
Description
Altronix NetWaySP4BTPL3 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTPL3 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum headend media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.
Altronix - NETWAYSP4BTPL3 - Features
- Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 360W total power)
- IEEE 802.3af, 802.3at, 802.3bt compliant
- Two (2) Gigabit SFP ports
- VLAN (Virtual Local Area Networks) subnetwork allows for the grouping together of devices for improved network traffic and higher security
- Built-in charger for sealed lead acid or gel type batteries- CE European Conformity NetWaySP4BTPL3
- Switch and power supply are factory mounted on a backplane
- LINQ Technology:- Remote network management allows for camera/device reset and diagnostic monitoring
- Provides local and/or remote access to critical information via LAN/WAN
- Email and Windows Dashboard Alert notifications report real-time events
- Event log tracks history
Specifications
Specifications
Altronix - NETWAYSP4BTPL3 - Specifications
| Input Voltage | 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A |
|---|---|
| Power Output | Four (4) PoE ports rated at 90W each, 360W total power |
| SFP Ports | Two (2) Gigabit SFP ports |
| Ethernet Ports | Four (4) 10/100/1000 Mbps ports |
| Indicators (LED) | Individual PoE On LEDs for each port |
| Operating Temperature | 360W: – 40ºC to 45ºC (– 40ºF to 113ºF) |
| Relative Humidity | 85% +/- 5% |
| Operating Altitude | - 304.8 to 2,000m |
| Dimensions | 8.875"W x 2.375"L x 10.75"H (225.4 mm W x 60.3 mm L x 273.1 mm H) |
| Weights (approximate) | 2.6 Lbs. (1.18 kg) |
| BTU/Hr. (approx.) | 183 BTU/Hr |
