Brand: Altronix
|
SKU:
10078307

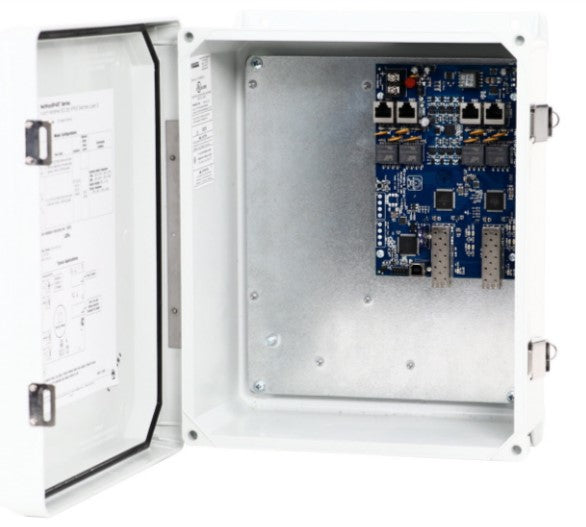

Altronix NETWAYSP4BTWPN | Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Requires 48-56V input
Regular price
$1,130.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAYSP4BTWPN | Dual 1G Fiber Optic SFP, 4-ports 10/100/1...
Regular price
$1,130.35
Unit price
Description
Description
Altronix NETWAYSP4BTWPN | Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Requires 48-56V input
Altronix NetWaySP4BTWPN supports up to 90W per port (320W total power) for deployingthe latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTWPN accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-endmedia converters/injectors. Embedded LINQ Technology allows to monitor, control, andreport power and diagnostics from anywhere.
Altronix NetWaySP4BTWPN supports up to 90W per port (320W total power) for deployingthe latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTWPN accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-endmedia converters/injectors. Embedded LINQ Technology allows to monitor, control, andreport power and diagnostics from anywhere.
Altronix - NETWAYSP4BTWPN - Features and Specifications
- INPUT
- 48V-57V (UL Listed ITE power supply)
- OUTPUT
- Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 320W total power).
- IEEE 802.3af, 802.3at, 802.3bt compliant
- SFP Ports
- Two (2) Gigabit SFP ports.
- Ethernet Ports
- Four (4) 10/100/1000 Mbps ports.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5 or higher structured cable.
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
- Indicators (LED)
- Individual PoE On LEDs for each port.
- Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
- ALOS LED indicates fiber connection for SFP port.
- Heartbeat LED indicates proper operation of the unit.
- VLAN
- Multiple management VLAN assignment.
- 802.1Q Tagged VLAN.
- Up to 10 VLAN groups. ID Range 2-4095.
Specifications
Specifications
Altronix - NETWAYSP4BTWPN - Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Altronix - NETWAYSP4BTWPN - Temperature
- Operating (240W): - 30ºC to 55ºC (- 22ºF to 131ºF)
- Operating (180W): - 30ºC to 65ºC (- 22ºF to 149ºF)
- Operating (150W): - 30ºC to 75ºC (- 22ºF to 167ºF)
- Storage: -30ºC to 85ºC (-22ºF to 185ºF)
- Relative Humidity: 85% +/- 5%
- BTU/Hr (approx.): 61 BTU/Hr.
- Operating Altitude - 304.8 to 2,000m.
Altronix - NETWAYSP4BTWPN - Specifications
| UNSPSC Code | 43201553 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - NETWAYSP4BTWPN - Weights (approximate)
| Product Weight: | 9.5 Lbs. (4.3 kg). |
|---|---|
| Shipping Weight | 10.9 Lbs. (4.9 kg). |
Altronix - NETWAYSP4BTWPN - Accessories
| NetWaySP4PX | 4-port Fiber Optic Transceivers with Built-In Power Supply/Charger for conventional Fiber or composite cable (fiber+copper) Application; 120W per port (480W total) |
|---|---|
| P1AB2K | Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit |
| P1GCE | Small Form-Factor Pluggable (SFP) Copper Transceiver |
| P1MM | Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver |
| P1SM10 | Small Form-Factor Pluggable (SFP) Single Mode Transceiver |
| PMK1 | Pole Mount Kit, For Outdoor Enclosures |
| FTK100 | Fiber Termination Kit |
| WG1 | NEMA Rated Wire Gland Inlets |
