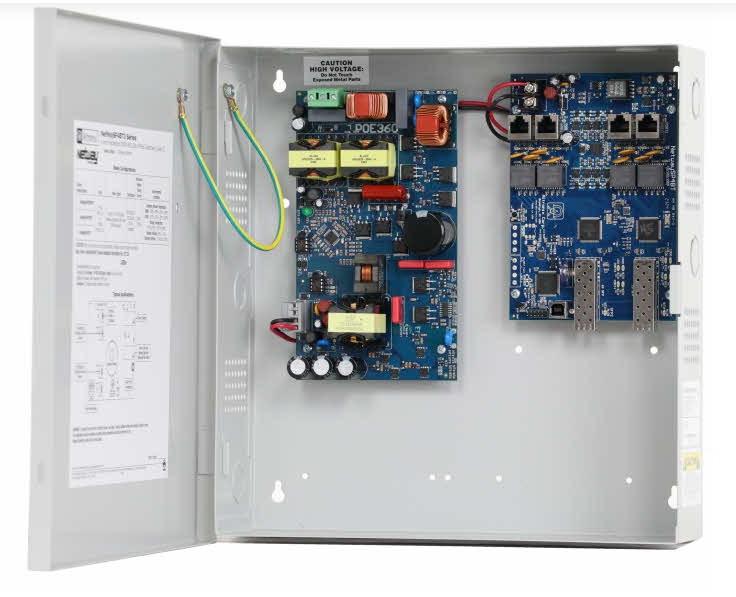

Altronix NETWAYSP4BTX3 | Dual Fiber Optic SFP 1G Link, 4-port Hardened Network Managed 802.3bt 4PPoE Switch and 320W Power Supply/Charger mounted in NEMA1 Rated Indoor Enclosure
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAYSP4BTX3 | Dual Fiber Optic SFP 1G Link, 4-port Harde...
Description
Description
Altronix NetWaySP4BTX3 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTX3 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum headend media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.
Altronix - NETWAYSP4BTX3 - Features
- Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 360W total power)
- IEEE 802.3af, 802.3at, 802.3bt compliant
- VLAN (Virtual Local Area Networks) subnetwork allows for the grouping together of devices for improved network traffic and higher security
- Built-in charger for sealed lead acid or gel type batteries
- CE European Conformity- NEMA 1 Rated enclosure for indoor use
- LINQ Technology:- Remote network management allows for camera/device reset and diagnostic monitoring- Provides local and/or remote access to critical information via LAN/WAN
- Email and Windows Dashboard Alert notifications report real-time event
- Two (2) Gigabit SFP ports
Specifications
Specifications
Altronix - NETWAYSP4BTX3 - Specifications
| Input | 5A/250V |
|---|---|
| Maximum Power | Four (4) PoE ports rated at 90W each, 360W total power |
| SFP Ports | Two (2) Gigabit SFP ports |
| Ethernet Ports | Four (4) 10/100/1000 Mbps ports |
| Connectivity | RJ45, auto-crossover |
| Wire type | 4-pair CAT5e or higher structured cable |
| Battery Charging | 48VDC charging circuit charges sealed lead acid or gel type batteries |
| VLAN | 802.1Q Tagged VLAN |
| Operating Temperature | – 40ºC to 45ºC (– 40ºF to 113ºF) |
| Operating Altitude | - 304.8 to 2,000m |
