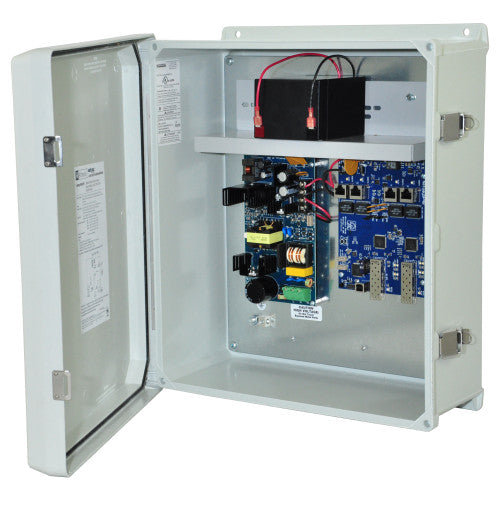

Altronix NETWAYSP4LWPX | Dual 1G Fiber SFP, Hardened 75W Power Supply/Optimized LiFePO4 Battery Charger
Regular price
$1,177.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix NETWAYSP4LWPX | Dual 1G Fiber SFP, Hardened 75W Power Supp...
Regular price
$1,177.93
Unit price
Description
Description
Altronix NETWAYSP4LWPX | Dual 1G Fiber SFP, Hardened 75W Power Supply/Optimized LiFePO4 Battery Charger
Altronix NetWaySP4LWPX Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere. These units are designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.
Altronix NetWaySP4LWPX Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere. These units are designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.
Altronix - NETWAYSP4LWPX - Features and Specifications
- INPUT
- 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
- Power Output
- four (4) ports PoE+ (30W) or two (2) Hi-PoE (60W) ports.
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- 75W total power.
- (Note: connected devices in total not to exceed 75W).
- Integral surge protection.
- Fiber Port
- Two (2) Gigabit SFP ports.
- Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
- Ethernet Ports
- Four (4) 10/100/1000 Mbps ports.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair Cat-5 or better structured cable.
- Distance: up to 100m.
- Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
- Battery Backup
- Built-in charger for 12V LiFePO4 (Lithium Iron Phosphate) battery.
- Automatic switch over to stand-by battery when AC fails.
- Indicators (LED)
- Individual PoE On LEDs for each port.
- Individual IP Link status, 10/100/1000Base-T/active LEDs for each port.
- ALOS LED indicates fiber connection for SFP port.
- Heartbeat LED indicates proper operation of the unit.
Specifications
Specifications
Altronix - NETWAYSP4LWPX - Enclosure
- NEMA 4/IP 66 Rated enclosure for outdoor use.
- Accommodates up to one (1) 13VDC/4.5AH Batteries.
- Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Altronix - NETWAYSP4LWPX - Temperature
- Operating:
- 60W: - 40° C to 75° C ( - 40° F to 167° F).
- 75W: - 40° C to 70° C ( - 40° F to 158° F).
- Storage: - 40° C to 85° C ( - 40° F to 185° F).
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.): 61 BTU/Hr.
- Operating Altitude
- - 304.8 to 2,000m.
Altronix - NETWAYSP4LWPX - Specifications
| Device Technology | 10/100/1000BASE-T |
|---|---|
| Number of Ports | 2022-04-01 00:00:00 |
| Type of Device | STANDALONE SWITCH |
| UNSPSC Code | 55101515 |
Altronix - NETWAYSP4LWPX - Weights (approximate)
| Product Weight: | 15 Lbs. (6.8 kg). |
|---|---|
| Shipping Weight | 17.5 Lbs. (7.9 kg). |
