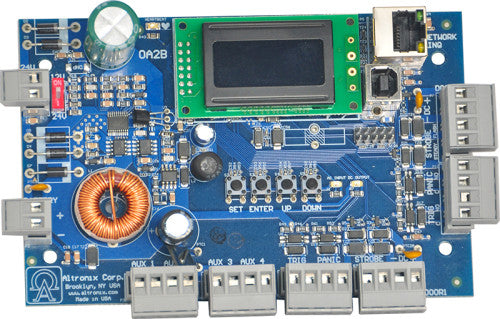

Altronix OA2B | Occupancy Alert System, Board

Altronix OA2B | Occupancy Alert System, Board

Input Power Options / AC:

24VAC/50VA Plug-in transformer

Trigger:

Two (2) Door Sensor/Trigger inputs
Two (2) Strobe “Steady” Trigger Inputs
Two (2) Strobe “Flash” Trigger Inputs
Two (2) “Panic/Emergency” Trigger Inputs

Output Options

12VDC/2.5A, 24VDC/1.25A, (30W)
Two (2) Strobe Switched Power Outputs
Four (4) Aux. Power Outputs

Timer

Alphanumeric LCD display simplifies programming
EE Prom memory protects against loss of programming due to power failure
Momentary and/or Latching Events

Battery Backup

Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous

Indicators LED

AC Power (Green): Input voltage is present
DC Output (Red): 12/24VDC is on
Trigger: Active

LINQ Technology

Remote network management allows for device reset and monitoring
Provides local and/or remote access to critical information via LAN/WAN
Email and Windows Dashboard Alert notifications report real-time diagnostics
Event log tracks history

Environmental / Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).

Relative Humidity

Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

61 BTU/Hr.

Mounting hardware is included / Dimensions (approximate):

6.125"W
x
3.875"L
x
1.5"H
(155.6 mm W x 98.4 mm L x 38.1 mm H).

Weights (approximate):

Product Weight:
0.7 Lbs.
(0.32 kg).
Shipping Weight:
1.1 Lbs.
(0.5 kg).
