Brand: Altronix
|
SKU:
764356

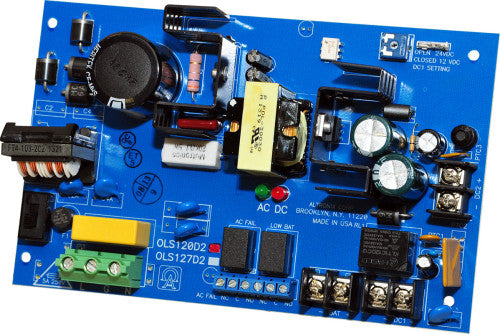

Altronix OLS120D2 | Power Supply Charger, Dual Output, 12/24VDC @ 4A, 115/220VAC, Board
Regular price
$218.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix OLS120D2 | Power Supply Charger, Dual Output, 12/24VDC @ 4...
Regular price
$218.70
Unit price
Description
Description
Altronix OLS120D2 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input to a 12VDC/24VDC output and a 12VDC fixed output (see specifications).This unit has a wide range of applications for access control and security system accessories that require additional power.
Specifications
Specifications
Dimensions (approximate)
- 4.5"W x 7.25"L x 1.79"H (114.3 mm W x 184.15 mm L x 45.466 mm H).
Input
- Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A.
Output
- DC1 - 12 or 24VDC @ 3A and DC2 - 12VDC @ 1A
- Note:
- If DC2 is not used, DC1 rating is 12VDC or 24VDC rated @ 4A max.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries. Two (2) 12VDC batteries connected in series are required.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 0.7 Lbs. (0.32 kg). |
|---|---|
| Shipping Weight | 0.9 Lbs. (0.4 kg). |
