Brand: Altronix
|
SKU:
720487

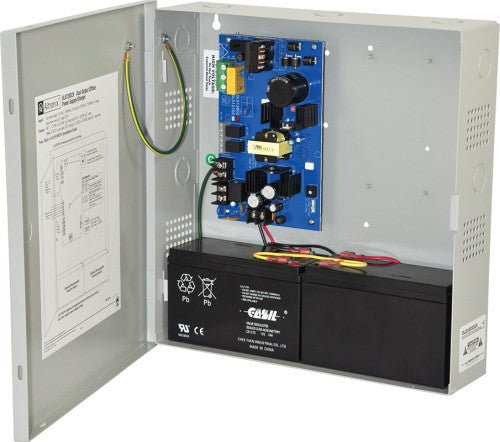

Altronix OLS120D2X | Power Supply Charger, Dual Output, 12/24VDC @ 4A, 115/220VAC, BC300
Regular price
$292.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix OLS120D2X | Power Supply Charger, Dual Output, 12/24VDC @ ...
Regular price
$292.45
Unit price
Description
Description
OLS120D2X dual output power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input to a 12VDC/24VDC output and a 12VDC fixed output (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A.
- Input fuse rated @ 5A/250V.
Output
- Output 1 (DC1) - 12VDC or 24VDC @ 3A and Output 2 (DC2) - 12VDC @ 1A
- Note:
- If Output 2 (DC2) is not used, Output 1 (DC1) rating is 12VDC or 24VDC rated @ 4A max.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 7.4 Lbs. (3.36 kg). |
|---|---|
| Shipping Weight | 8.3 Lbs. (3.76 kg). |
