Altronix OLS187 | 12/24 VDC 6A Single Output Power Supply Charger
Regular price
$185.76
Unit price
Description
Description
Altronix OLS187 | 12/24 VDC 6A Single Output Power Supply Charger

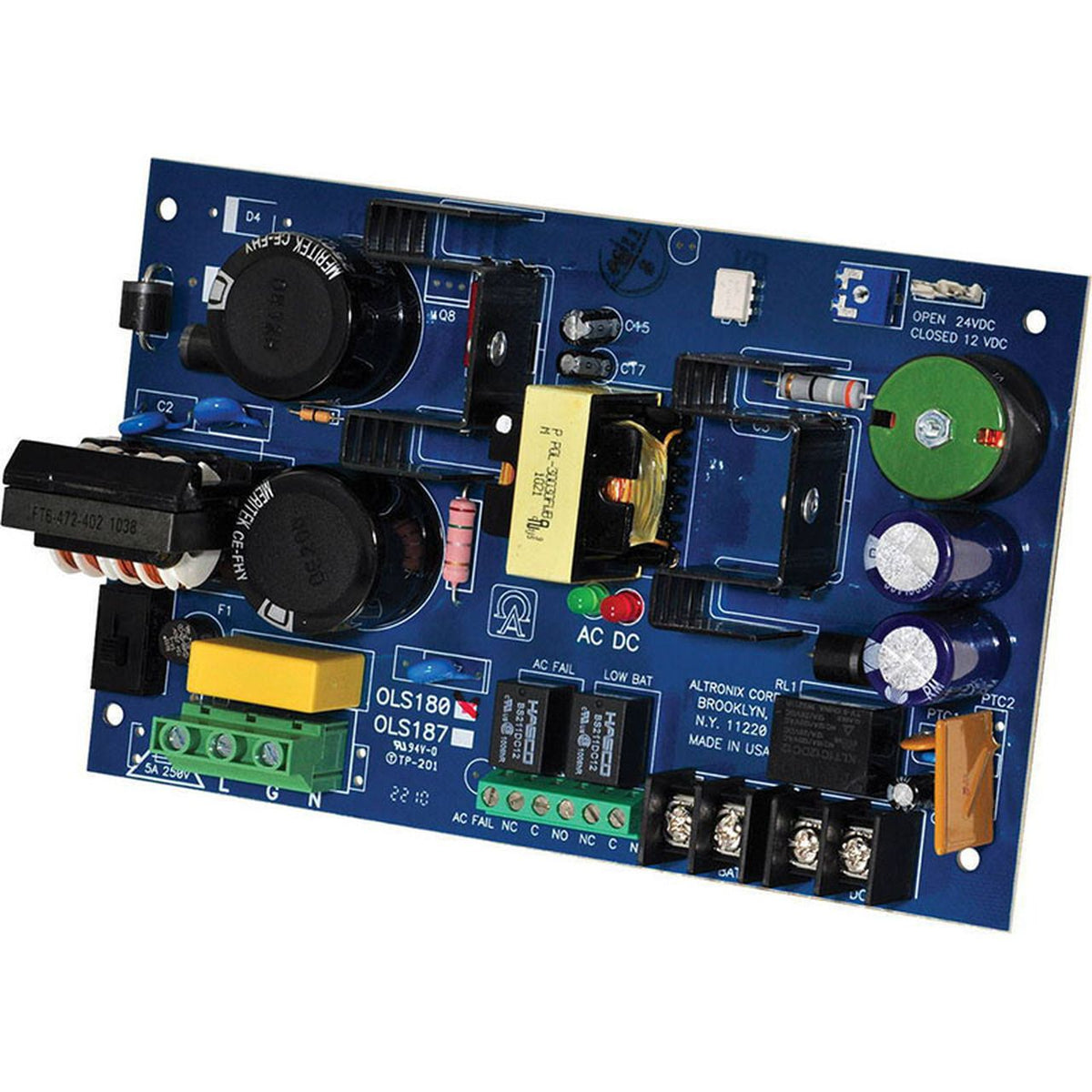

The OLS187 from Altronix is a 12/24 VDC 6A single-output power supply charger. The power supply/charger converts a 115VAC, 50/60Hz input into a 12VDC or 24VDC output @ 6A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power. Power Supply Charger, Single Output, 12/24VDC @ 6A, 115VAC, Board.
Altronix - OLS187 - Features
- Input
- 115VAC, 50/60Hz, 1.9A
- Output
- 12VDC or 24VDC selectable output
- 6A continuous supply current
- Filtered and electronically regulated output
- Short circuit and thermal overload protection
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switch over to stand-by battery when AC fails
- Supervision
- AC fail supervision (form "C" contacts)
- Low battery supervision (form "C" contacts)
- Visual Indicators
- AC input and DC output LED indicators
- Features
- Power ON/OFF switch
- Includes battery leads
- Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F)
- Storage: 20° C to 70° C ( 4° F to 158° F)
- Relative Humidity 85% +/5%
- BTU/HR (APPROX.):
- 12VDC: 37 BTU/Hr
- 24VDC: 74 BTU/Hr
- System AC input VA requirement: 218.5VA
