Brand: Altronix
|
SKU:
10386405

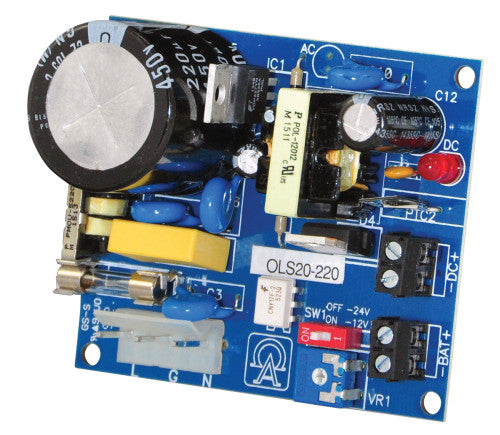

Altronix OLS20220 | Power Supply Charger, Single Output, 12VDC 1A or 24VDC .5A, 220VAC, Board
Regular price
$53.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix OLS20220 | Power Supply Charger, Single Output, 12VDC 1A o...
Regular price
$53.29
Unit price
Description
Description
Altronix OLS20220 | Power Supply Charger, Single Output, 12VDC 1A or 24VDC .5A, 220VAC, Board
1A @ 12VDC or 0.5A @ 24VDC.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Automatic switch over to stand-by battery when AC fails.
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 6 BTU/Hr.
System AC input VA requirement: 57.5VA.
x
3.1"L
x
1.3"H
(66.4 mm W x 78.74 mm L x 33.02 mm H).
0.25 Lbs.
(0.11 kg).
Shipping Weight:
0.35 Lbs.
(0.16 kg).
Input
220VAC, 50/60Hz, 0.5A.Output
12VDC/24VDC selectable output.1A @ 12VDC or 0.5A @ 24VDC.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.Automatic switch over to stand-by battery when AC fails.
Visual Indicators
AC input and DC output LED indicators.Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 6 BTU/Hr.
System AC input VA requirement: 57.5VA.
Dimensions (approximate):
2.6"Wx
3.1"L
x
1.3"H
(66.4 mm W x 78.74 mm L x 33.02 mm H).
Weights (approximate):
Product Weight:0.25 Lbs.
(0.11 kg).
Shipping Weight:
0.35 Lbs.
(0.16 kg).
Overview
- OLS20220 power supply/charger converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a 12VDC or 24VDC output with 0.5A continuous supply current. This unit has a wide range of applications for access control and security system accessories that require additional power.
Specifications
Specifications
Altronix - OLS20220 - Overview
- OLS20220 power supply/charger converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a 12VDC or 24VDC output with 0.5A continuous supply current. This unit has a wide range of applications for access control and security system accessories that require additional power.
Altronix - OLS20220 - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - OLS20220 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | OLS20220 |
| Item Description | Power Supply Charger, Single Output, 12VDC 1A or 24VDC .5A, 220VAC, Board |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 0.25 Lbs. |
| (0.11 kg). | Shipping Weight: |
| 0.35 Lbs. | (0.16 kg). |
