Brand: Altronix
|
SKU:
10522113

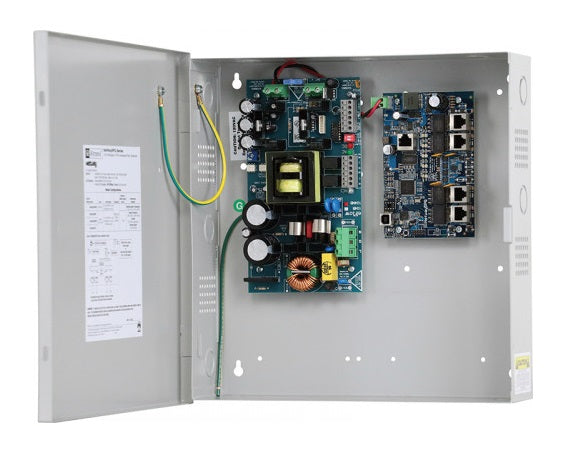

Altronix OTM1000E3M230C | 5-port Managed Hardened PoE+ Switch with Power Supply/Charger - NEMA1 Rated Indoor Enclosure BC300
Regular price
$887.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix OTM1000E3M230C | 5-port Managed Hardened PoE+ Switch with ...
Regular price
$887.83
Unit price
Description
Description
Altronix OTM1000E3M230C | 5-port Managed Hardened PoE+ Switch with Power Supply/Charger - NEMA1 Rated Indoor Enclosure BC300
Altronix NetWay5PQX powered hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance. Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics.
Altronix - NETWAY5PQX - Features
- Five (5) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5 or better structured cable
- Distance: up to 100m
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
- Remote network power management allows for device reset and monitoring
- Provides local and/or remote access to critical information via LAN/WAN
- Email and Windows Dashboard Alert notifications report real-time diagnostics
- Event log tracks history
- Multiple management VLAN assignment
- 802.1Q Tagged VLAN
- Up to 10 VLAN groups. ID Range 2-4095
Altronix - NETWAY5PQX - Features
| Altronix OTM1000E3M230C Data Sheet | Click to View |
|---|
Specifications
Specifications
Altronix - NETWAY5PQX - Input
- Voltage: 120VAC, 60Hz, 4.5A
- Input Fuse: 6.3A/250V
Altronix - NETWAY5PQX - Outputs
- Four (4) 10/100/1000 Mbps
- PoE/PoE+ (up to 30W) ports or IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
- 120W total power
- Integral surge protection
Altronix - NETWAY5PQX - Specifications
| Operating | - 30ºC to 70ºC (- 22ºF to 158ºF) |
|---|---|
| Storage | - 40ºC to 85ºC (- 40ºF to 185ºF) |
| Relative Humidity | 85% +/- 5% |
| Operating Altitude | - 304.8 to 2,000m. |
